4age 40mm Billet H-Beam Conrods

NZD$675.00 ex TAX

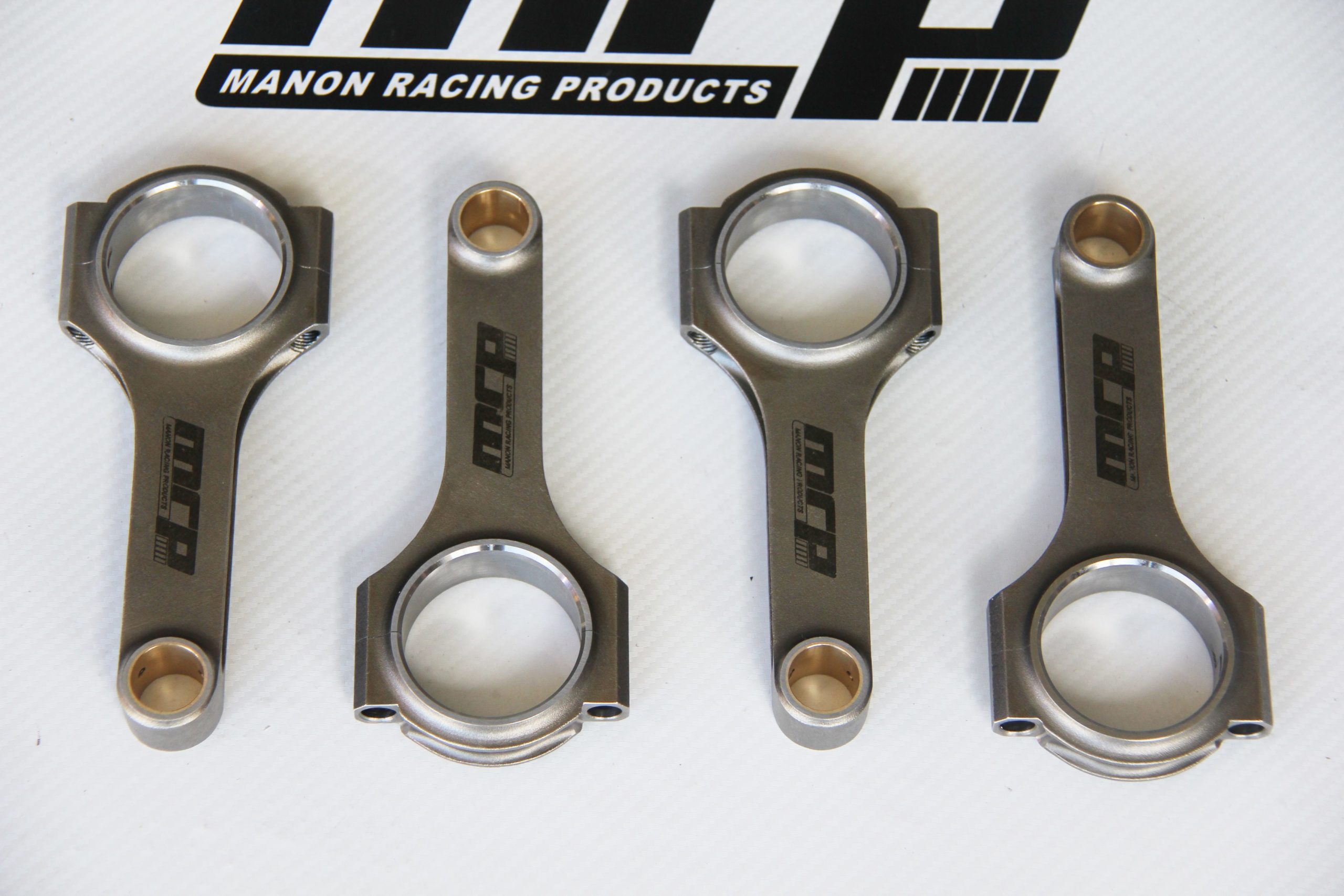

MRP 4age Pro H-Beam Conrods to Suit 40mm early 4age Crankshaft

After many years of R&D and real track testing we have come up with our own 4age conrods which are custom made to our specs, for those wanting to build 4agte or 4age configurations.
These conrods fit the early 4age 40mm bearings and 4age floating 20mm gudgen pins

We have track tested these to 800hp+ and 10,000rpm!

Material: 40Crnimoa (4340) Forged Steel
Hardness: HRC-33-38
Special doweled cap and profiled clearance
Silicon bronze bushings for floating piston wrist pins
Fully machined to produce the lightest and strongest rod possible
Sets weight matched +/- 1.5 grams

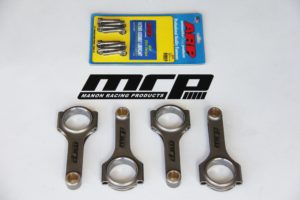

ARP 2000 conrod bolts (up to 800hp)
122mm center to center
HP Rating: 200hp per rod (Total 800hp) and 10,000rpm

Additional information

Weight 2.5 kg
