Toda 4age 20v Forged Pistons

NZD$1,350.00 ex TAX

Available on backorder

Piston Size

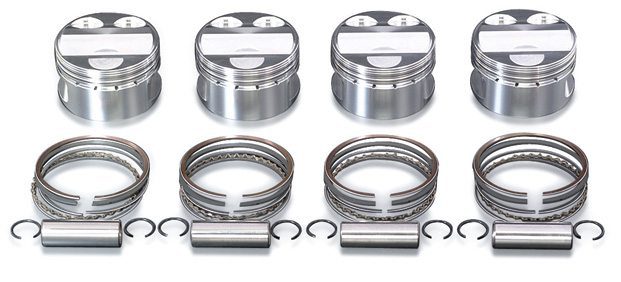

4AG (5 valve) High Comp Forged Piston KIT for AE111
Engine type 4AG 5 Valve (for AE111)
Part No. 13010-111-000 13020-111-000 13040-111-000
Bore ø81.00mm ø81.25mm ø82.00mm
Displacement 1587cc 1597cc 1627cc
Crown Volume *1 8.4cc/7.4cc 8.4cc/7.4cc 8.4cc/7.3cc
Projection Height *2 -0.2mm -0.2mm -0.2mm
Reference C/R *3 Standard head GKξ≈11.6:1
TODA head GK t=0.8mmξ≈12.2:1
Standard head GKξ≈11.7:1
TODA head GK t=0.8mmξ≈12.3:1
Standard head GKξ≈11.8:1
TODA head GK t=0.8mmξ≈12.5:1
*1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.NOTE: This product is only available for sale in New Zealand, if you are from overseas please search for you local Toda Dealer. Or contact us and we can help advise where to purchase

Additional information

Weight 4 kg
