4age Dry Sump Kit

NZD$4,500.00 ex TAX


MRP 4age Dry Sump kit

This has to be one of the most complete 4age dry sump kits on the market.
A full bolt on kit, all you need to do is plumb the system!
A must for any high performance track orientated engine. the vacuum this systems creates will also increase the engine power out put anywhere from 5-15hp.

Application: All 4age/7age FWD/RWD/AW11

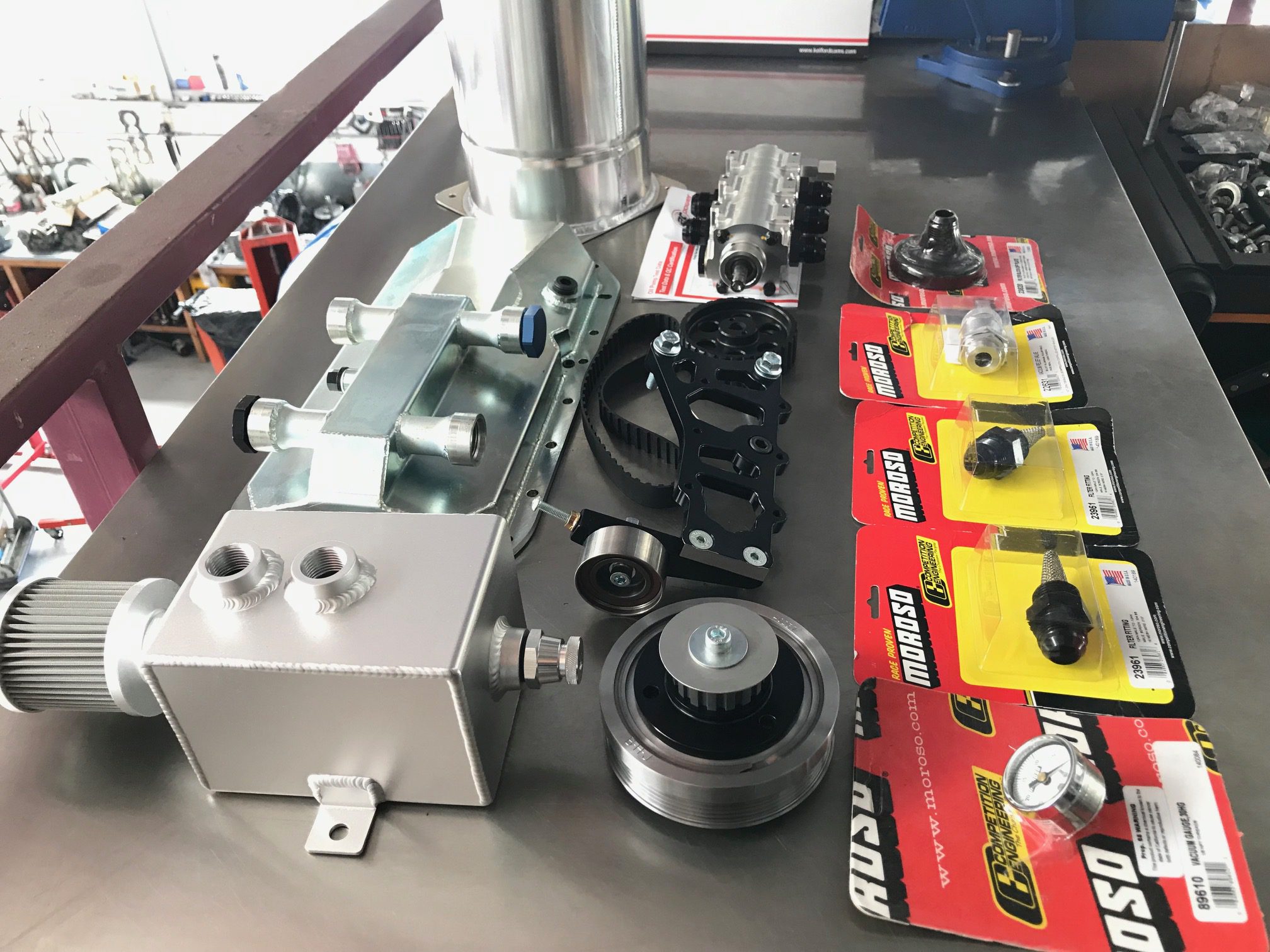

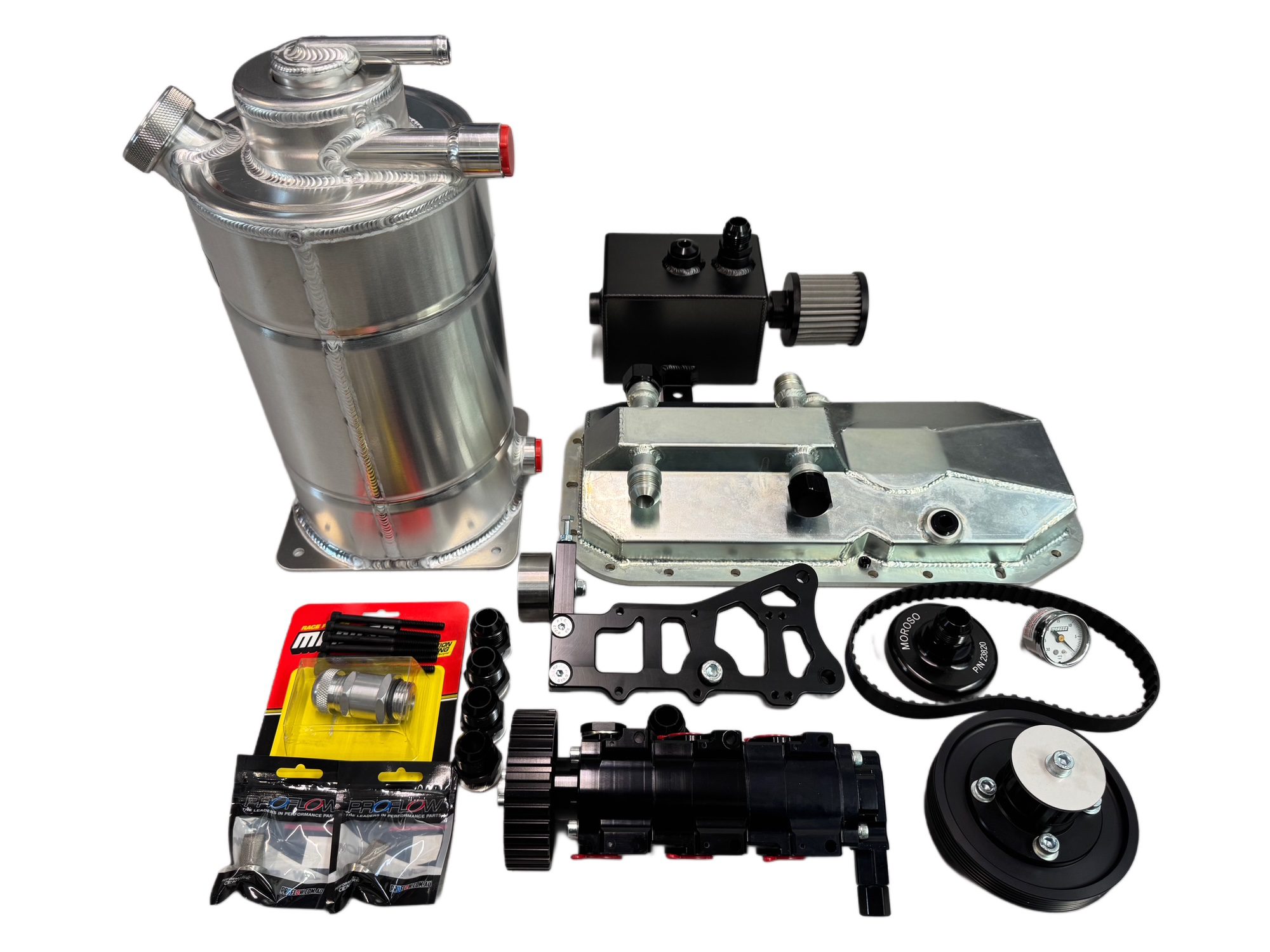

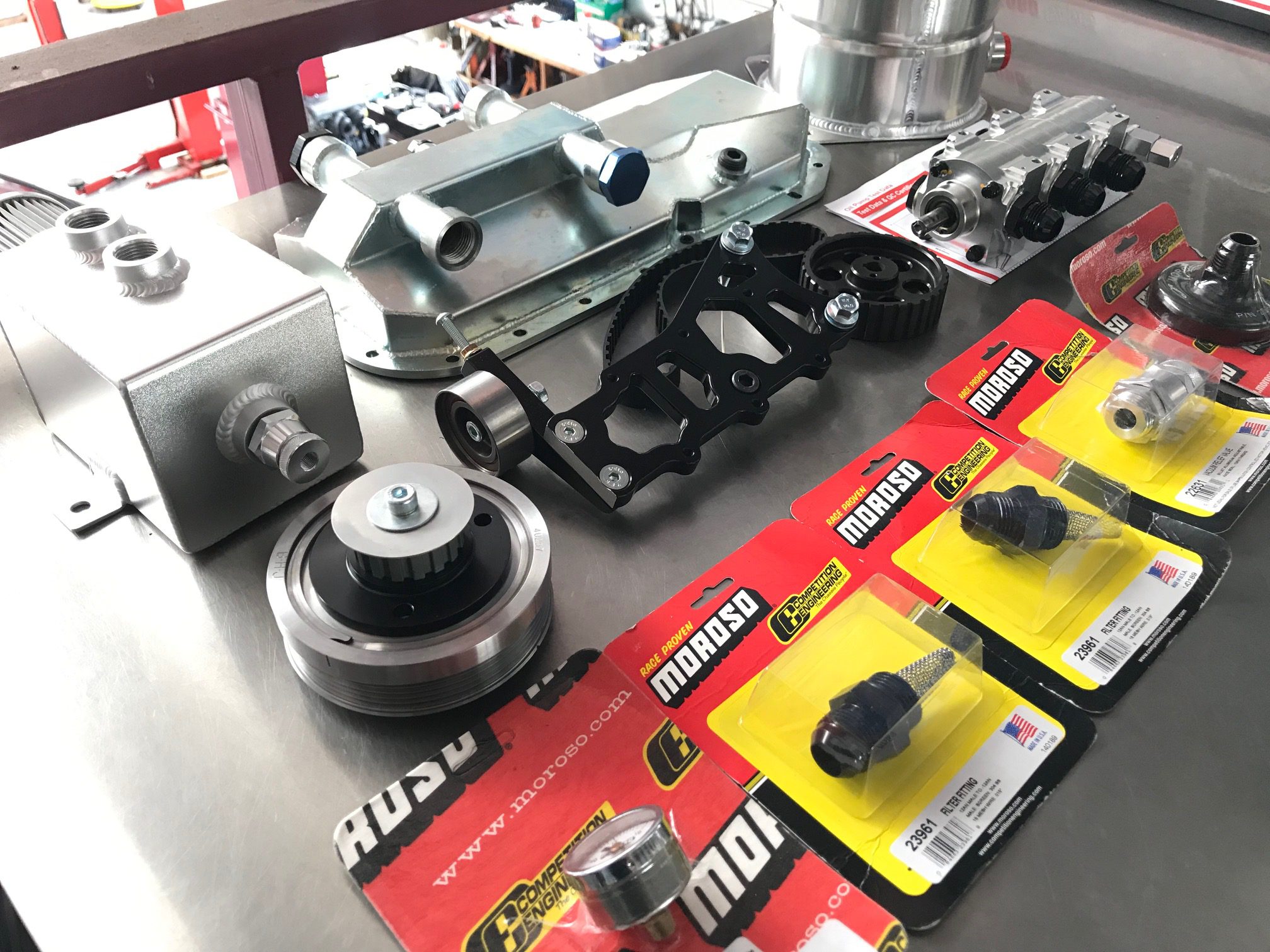

The kit contains the following:

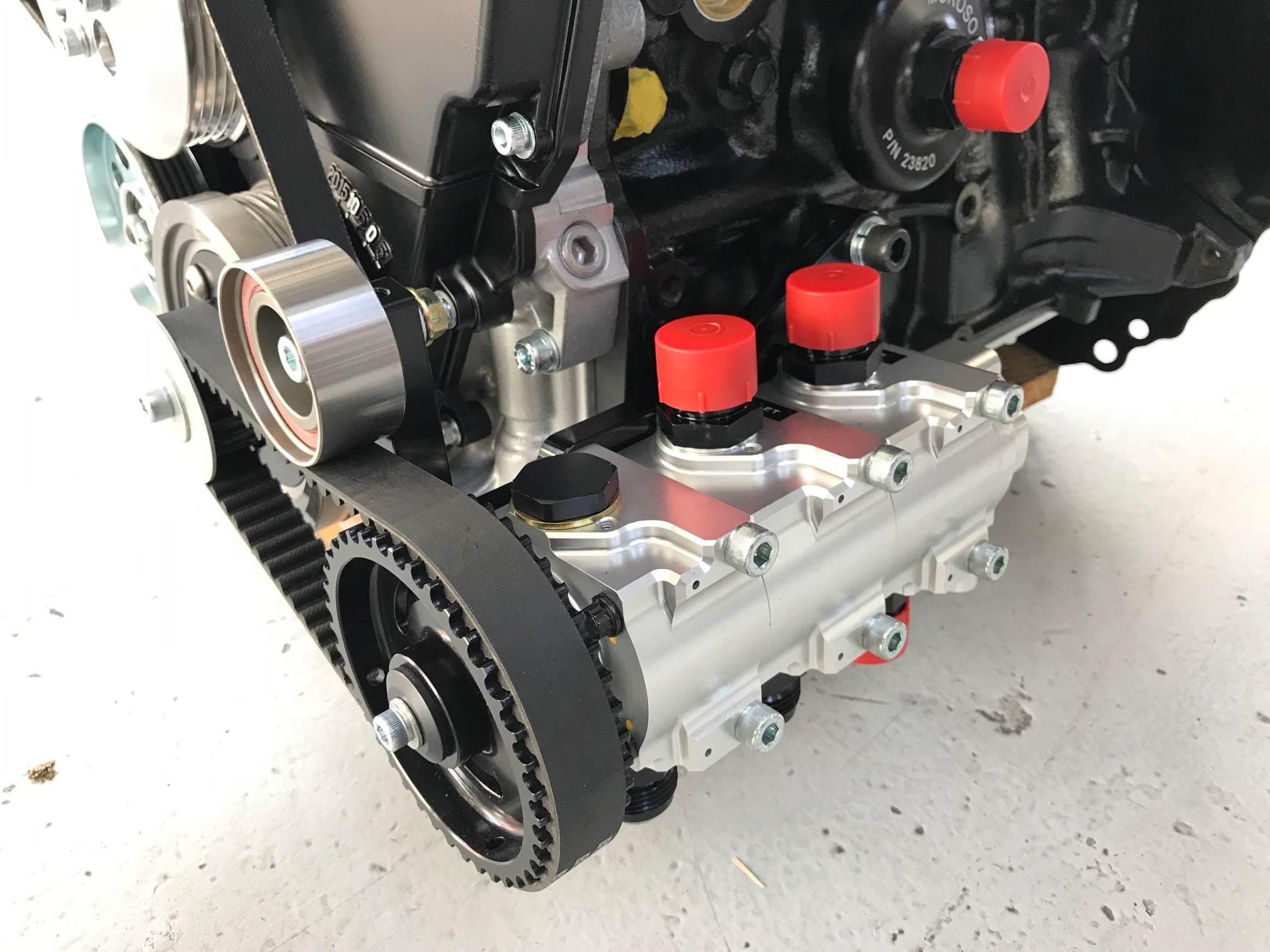

– AT Power Cordis 3 Stage Billet Pump with Gerator style gears for reliable stable pressure

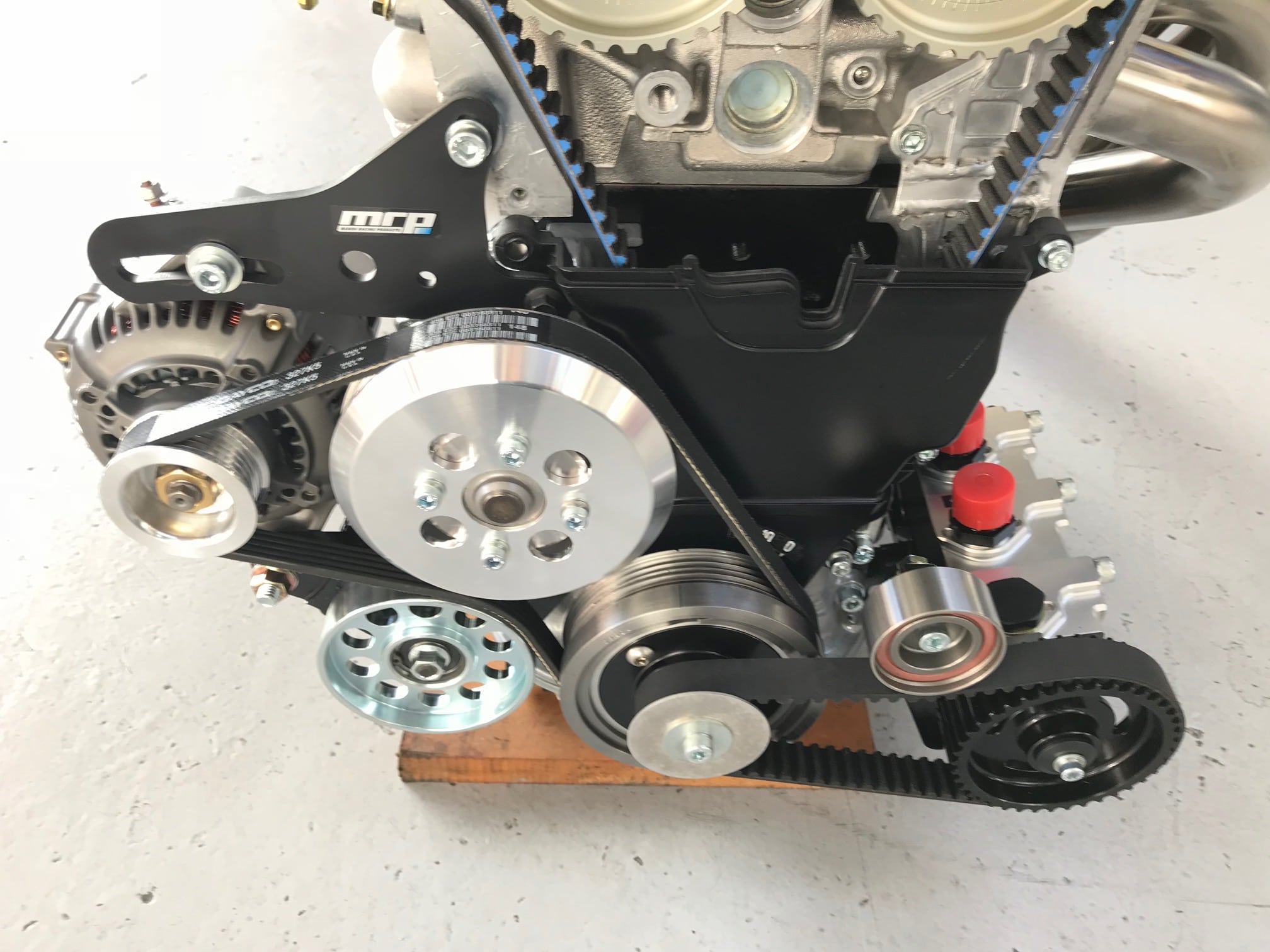

– Billet Pump bracket which mounts the pump on the Exhaust side (Optional intake side mounting)

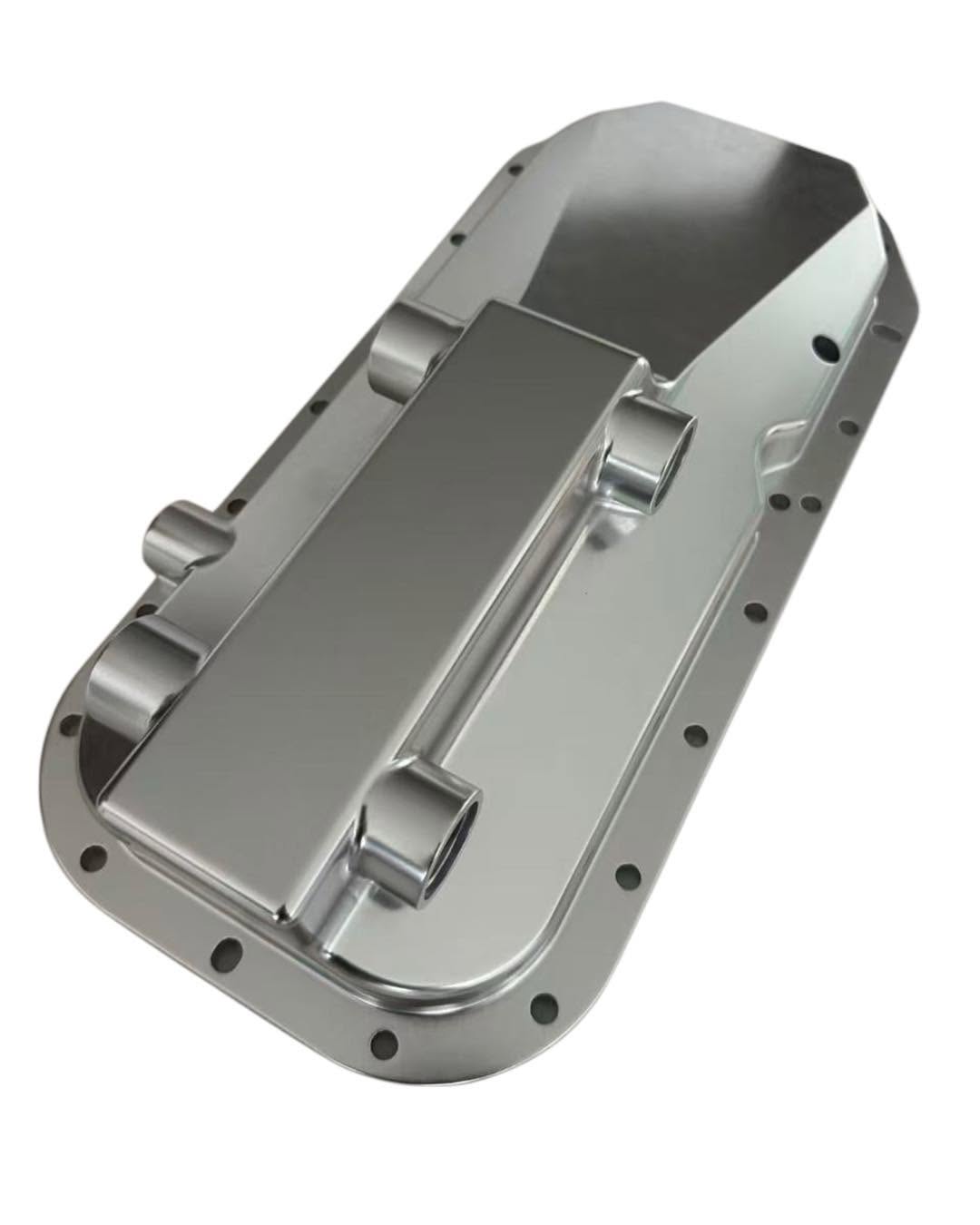

– Custom MRP sump pan with -12AN ports

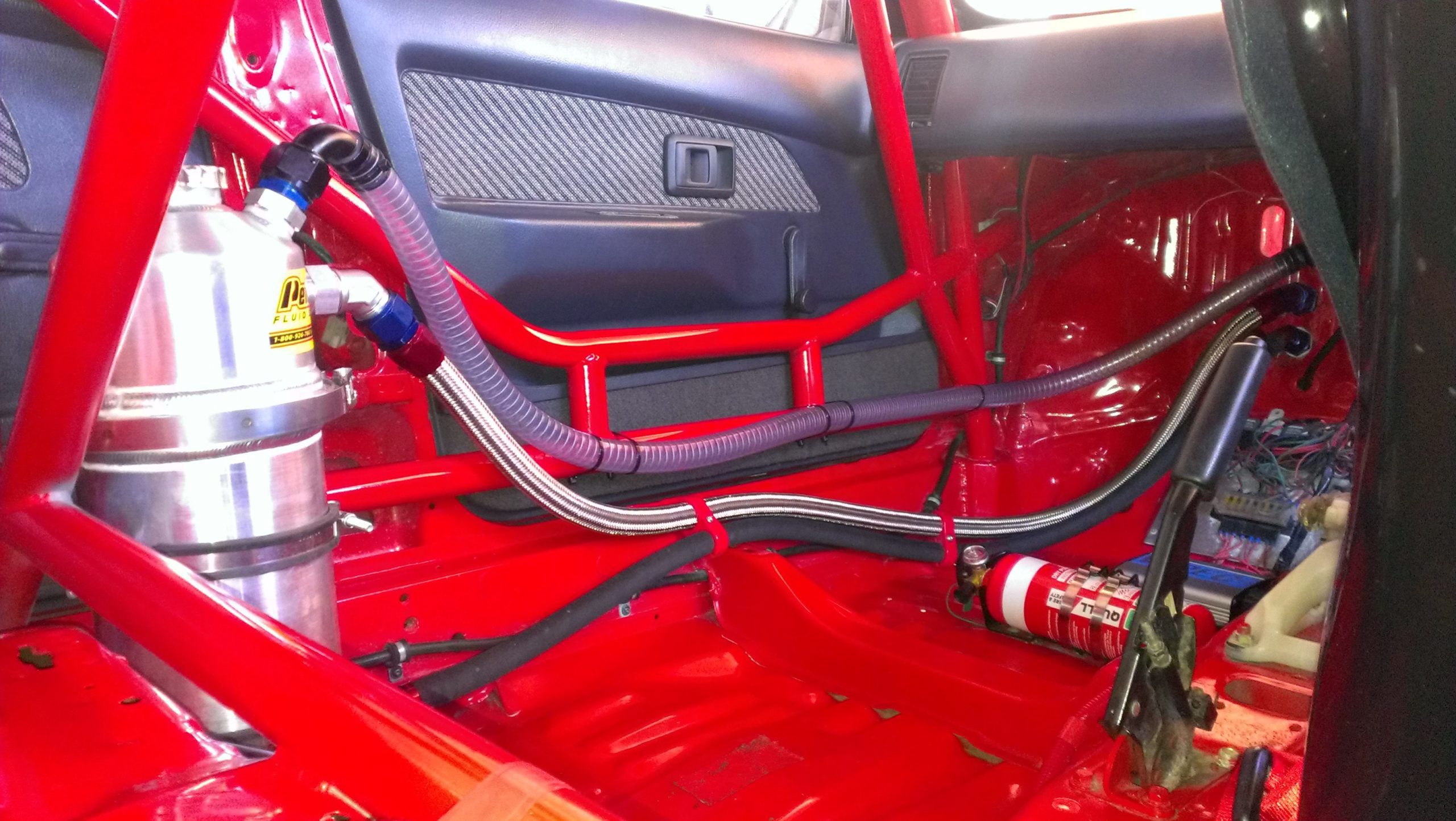

– 6L Aluminium baffled custom tank with swirl header tank – 410mm Tall, 200mm Wide with Square mounting base
– 2x -12AN Screen filters
– 2L Race Breather Can with magnetic filter
– Moroso oil filter block off plate
– Moroso adjustable vacuum relief valve
– Vacuum gauge
– MRP Solid Crank Pulley / *Optional Ross harmonic dampened pulley*
– AT Power Gilmer Drive Pulley
– Peterson Gilmer Pump Pulley
– Gilmer Belt
– Custom aluminium Drive mandrel
– Custom Gilmer PS pump pulley  (optional)

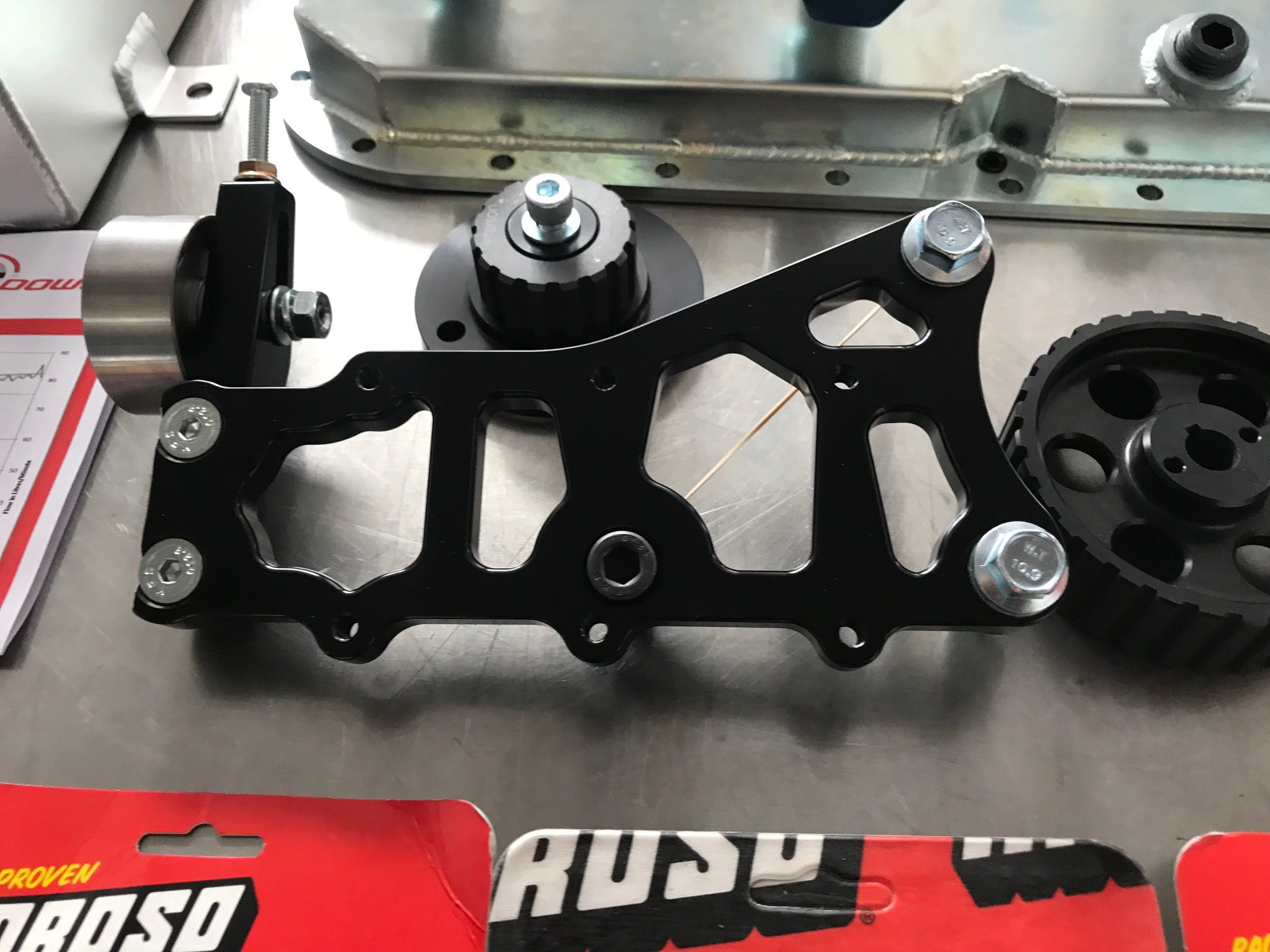

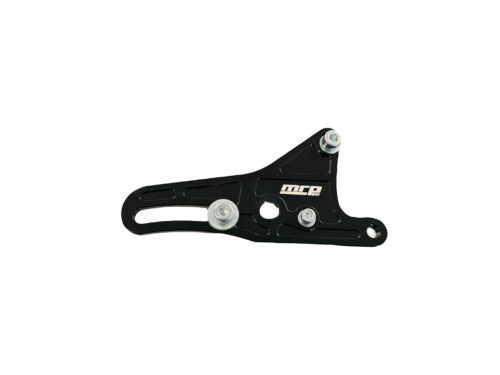

– Pump Idler tensioner with bracket

AN fittings & braided line is extra cost – Let us know if you need fittings and we can price you up.

Notes: Sump pans are a dual fitment to 16v/20v blocks. Also fits 7a blocks. Uses stock oil pump cover by removing the gears.

Here is a quick run down on advantages of using a dry sump system:

Additional information

Weight 14 kg
