AE86 KE70 Extra Big Brake Kit

NZD$1,850.00 ex TAX

Wilwood Plain Disc Ultralite 32 Wilwood Plain Disc Ultralite 32 Curved Vane +NZD$76.00 Wilwood Plain Disc Ultralite 32 Drilled +NZD$136.00 Wilwood GT48 Slotted Curved Vane +NZD$250.00 AP Rotors Curved Vane Slotted +NZD$800.00
BP-20 Fast Street Hawk DTC60 Race Pad +NZD$250.00 Pagid RST3 +NZD$250.00 Endless ME22 +NZD$190.00 Endless N35S +NZD$190.00
Categories: , , ,

Description

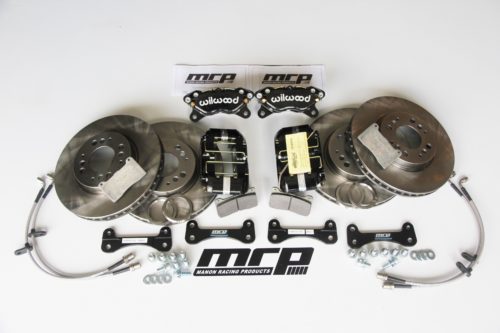

Wilwood Big brake upgrade kit to suit Toyota Corolla AE86 & KE70 (Late model with same struts as AE86)

# Wilwood Superlite 4 piston calipers
# Custom 2-piece Steel powder coated adapter bracket which meet all certification rules
# Zinc plated Allen bolts

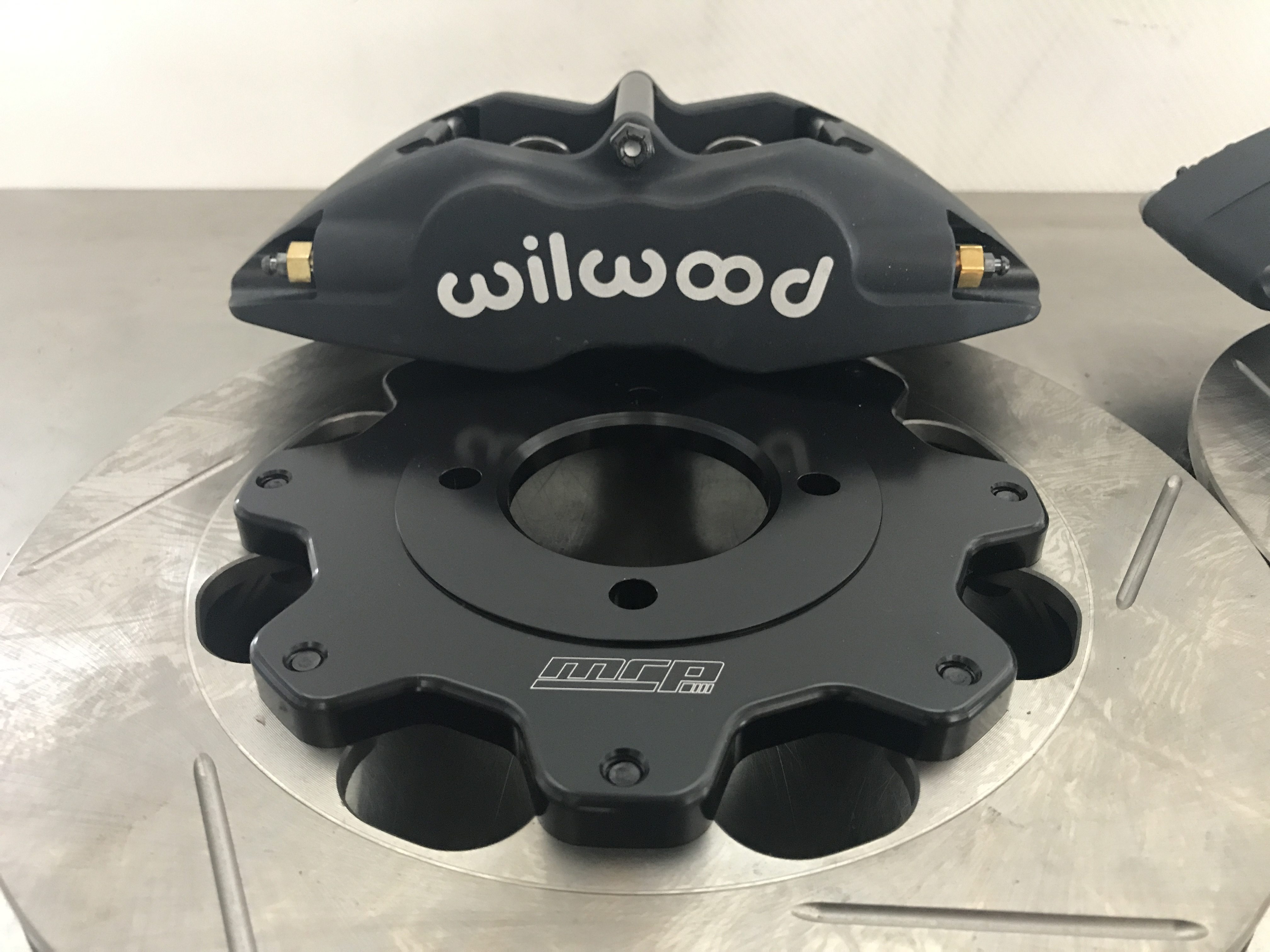

# Custom MRP 2 Piece Disc Hat Adapters T6061 Anodised Black
# Wilwood Ultralite 32 Vane 11.75″ x 1.25″ discs
# Wilwood Street/race pads (All round performance pad)
# Optional Race Pads
# HEL Braided brake lines

Note: These need sufficient clearance to fit a 15″ rim, please contact us for a cut out template to check fitment.

Great upgrade for MUCH better stopping power. Must have upgrade if your Corolla is to be used on the race track.

This kit fully bolts on with no modifications needed. Piston size in caliper has been chosen to suit the stock master cylinder. Therefore the pedal feel and height is better than the stock setup
The kit can fit standard OEM brake lines or other aftermarket lines

For KE70 fitment there are 2 models
1. Late model where the bolts that hold on the brake rotors come in from the backside, meaning the hubs are threaded
2. Early model where the bolts that hold on the brake rotors come in from the front side, meaning the oem discs are threaded and not the hub

Additional information

Weight 25 kg
