Wilwood Big brake upgrade kit to suit Mitsubishi Evo 1-3
# Wilwood Dynalite 4 piston calipers
# Optional Later model Dynapro caliper which is a revised version of the Dynalite in Shiny black – This caliper is more sturdy and less prone to flexing & ascetically looks more aggressive
# Custom Steel powder coated adapter brackets .
# Zinc plated allen bolts
# Brembo 276x25mm discs re-drilled – Fit 15″ wheels and above
# Optional larger 294mm-320mm disc for those runnings 16″+ Wheels
# Wilwood Street/race pads (All round performance pad)
#HEL Braided brake lines
Note: Front upgrade only (Rear upgrade please contact us)
6 Piston – May require larger Evo 7 Master Cylinder (1-1/16″ Bore Size)
Dynapro Dust Boot Calipers – Some countries require to have dust boots on the calipers for road use
Great upgrade for MUCH better stopping power. Must have upgrade if your Evo is to be used on the race track.
This kit fully bolts on with no modifications needed. Piston size in caliper has been chosen to suit the stock master cylinder. Therefore the pedal feel and height is better than the stock setup

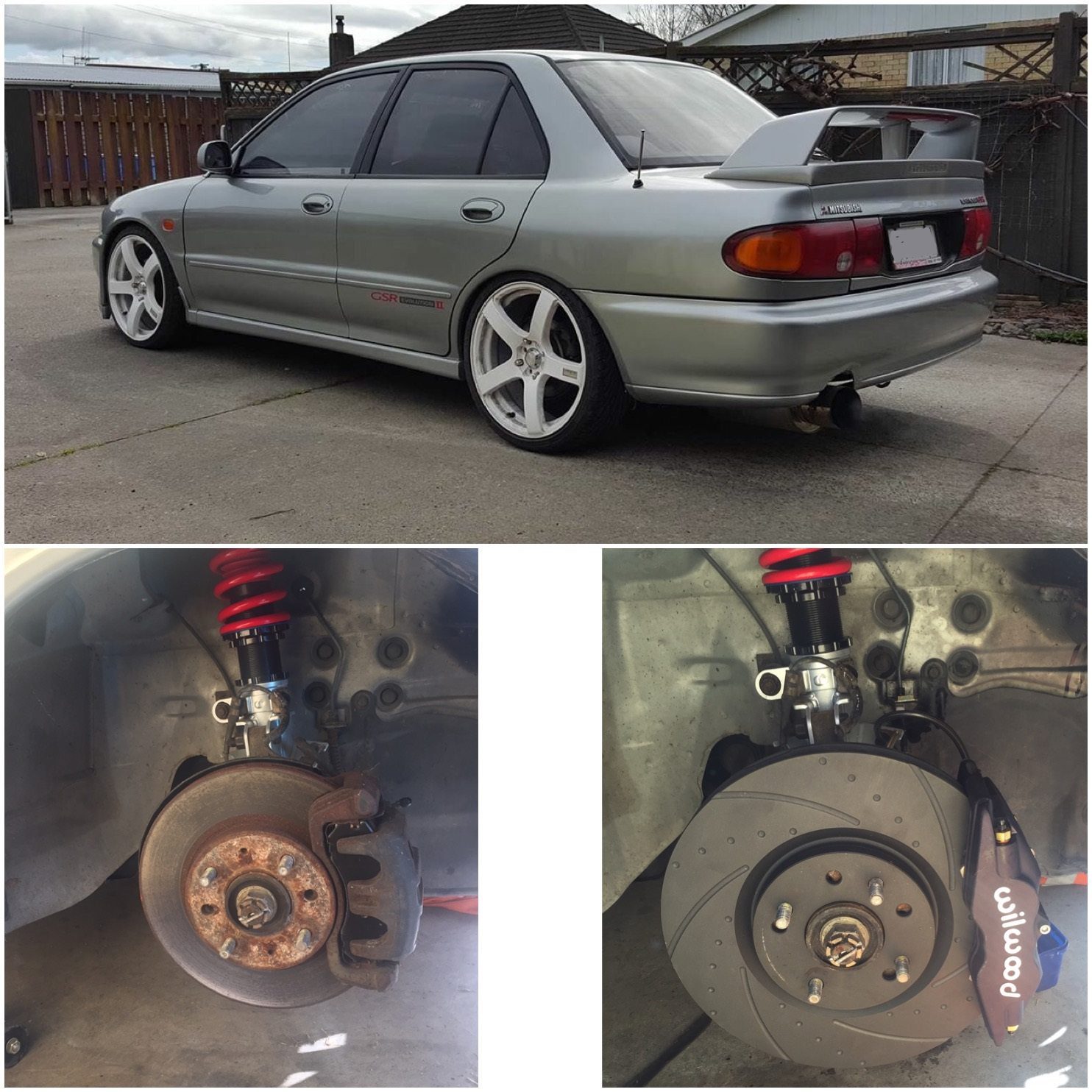

1st Picture – Superlite 4 Piston 324mm Setup

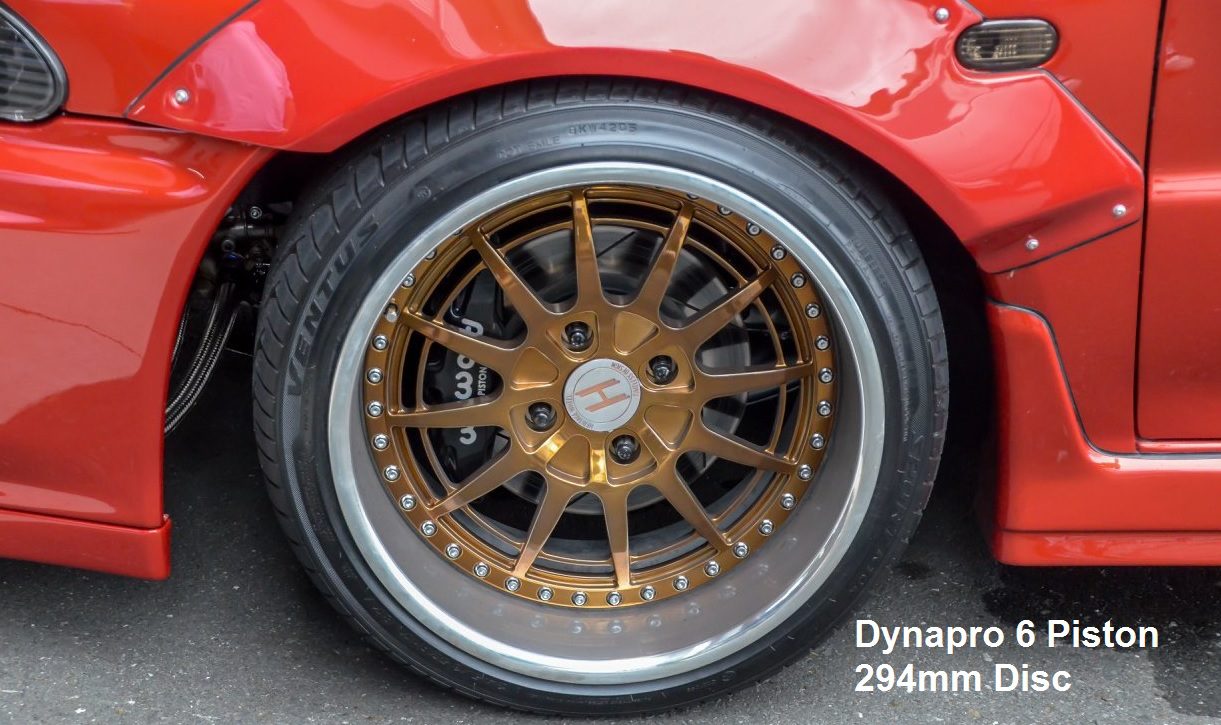

2nd Picture – Dynapro 6 Piston 294mm Setup

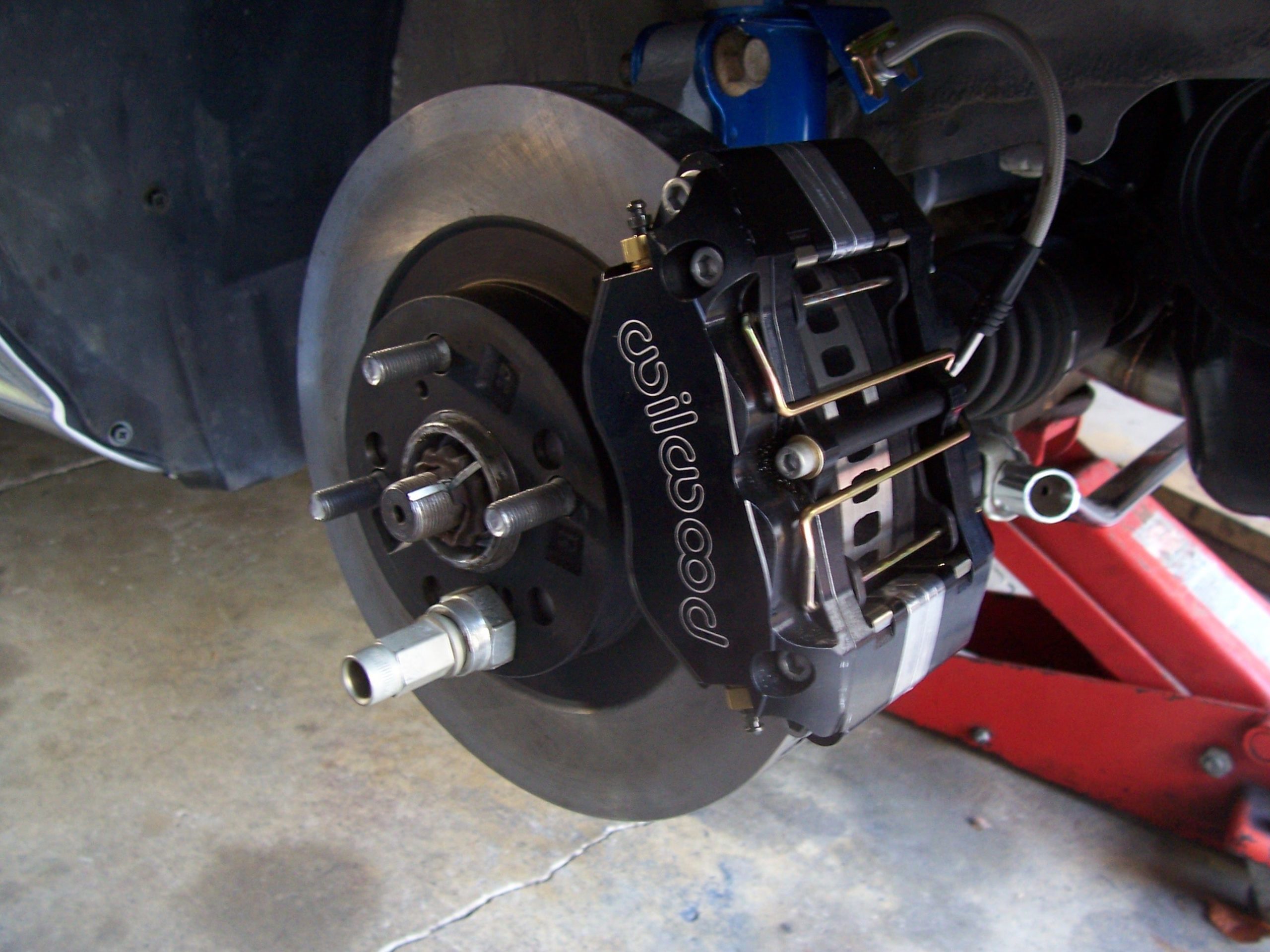

3rd Picture – Dynapro 4 Piston 276mm Setup
Optional larger kit is available to suit 16″+ wheels using disc size of 294mm or 320mm which features the larger Superlite Wilwood caliper – If your car is still 4 stud we re drill these discs. These will not pass NZ Low Volume Certification, but the other 276mm discs will.
