Steering Knuckles

NZD$495.00 ex TAX

Categories: ,

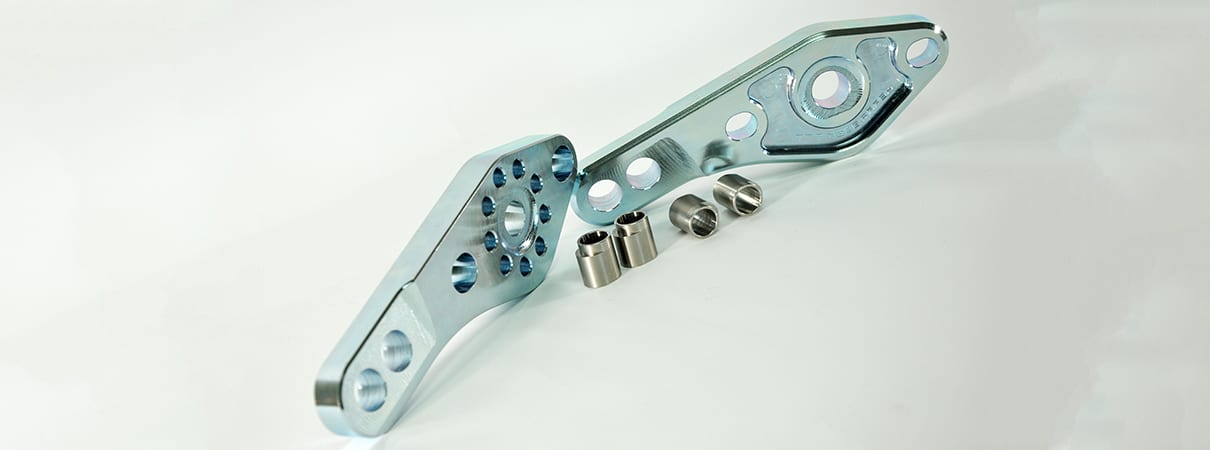

T3 AE86 Evolved Steering Knuckles

Based on years of feedback from pro drifters like Taka Aono, we have refined our drift knuckles into this reduced ackerman design for the best blend of steering angle and steering feedback.

Machined from Billet steel, with
Solid 6061 outer tie rods
Pocketed and lightened as much as possible to reduce weight
Stainless steel offset pills and ball joint sleeve allow these to fit just about every old school Toyota from the AE86, to the MA60
These will fit 85mm, 87mm and 90mm strut casings, and fit all medium and large ball joint sizes

You can use them “as is” to do what they are meant to do, or use them to get creative and put MA60 strut casings and brakes on your KE70 or AE86 for example!

Want to use longer lower control arms from a larger sedan on your AE86 or TE72, but the LCA’s have the larger Toyota ball joints? No problem. These will work for that too!

Two settings for the outer tie rod for adjustable steering quickness.

Outer tie rod spacers to allow adjustable bump steer on the knuckle.

We suggest these knuckles be used for dedicated drift car use only
The benefits built into them are specifically designed for drifting rather than road racing or street use.


Additional information

Weight 5 kg
