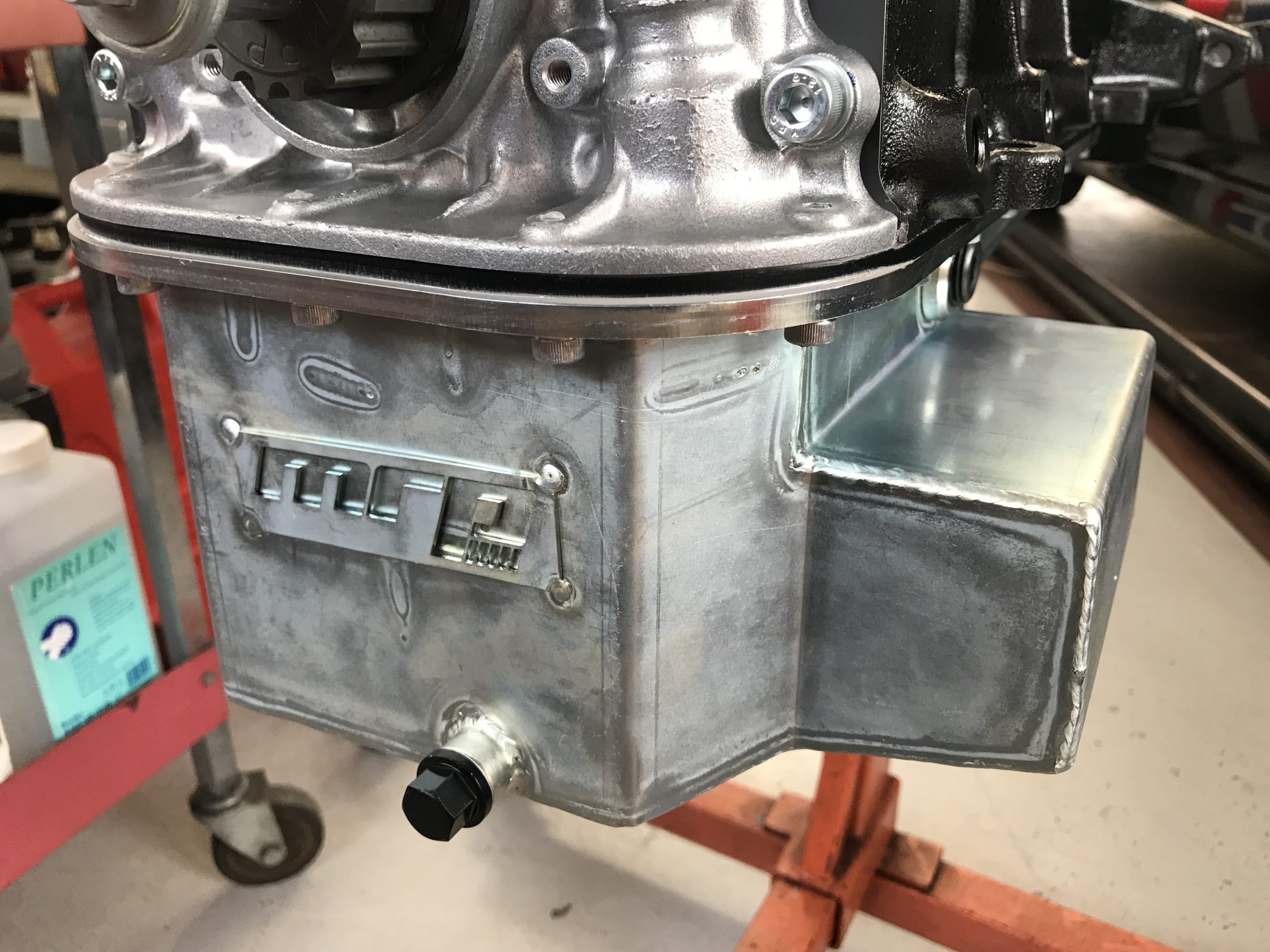

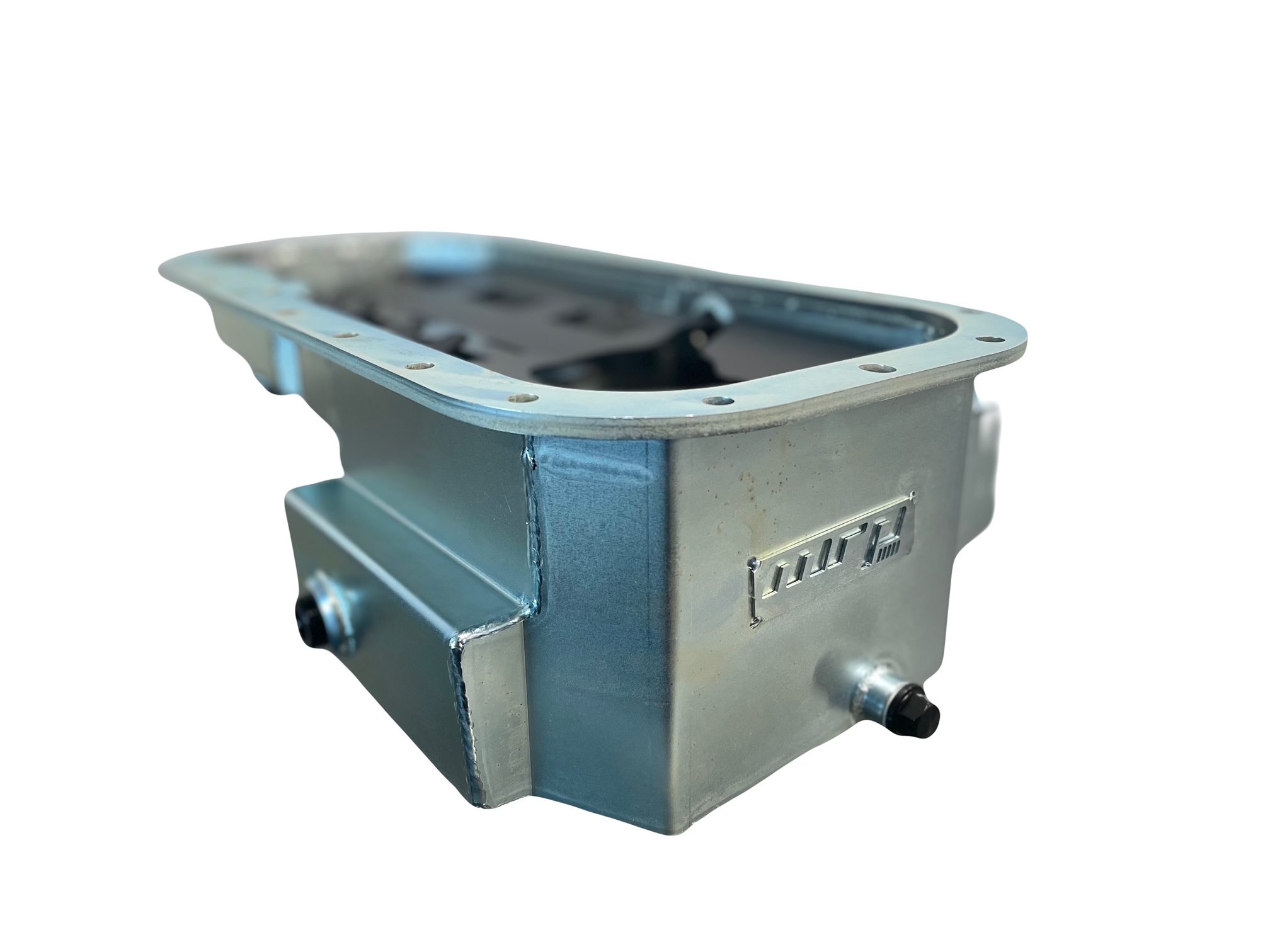

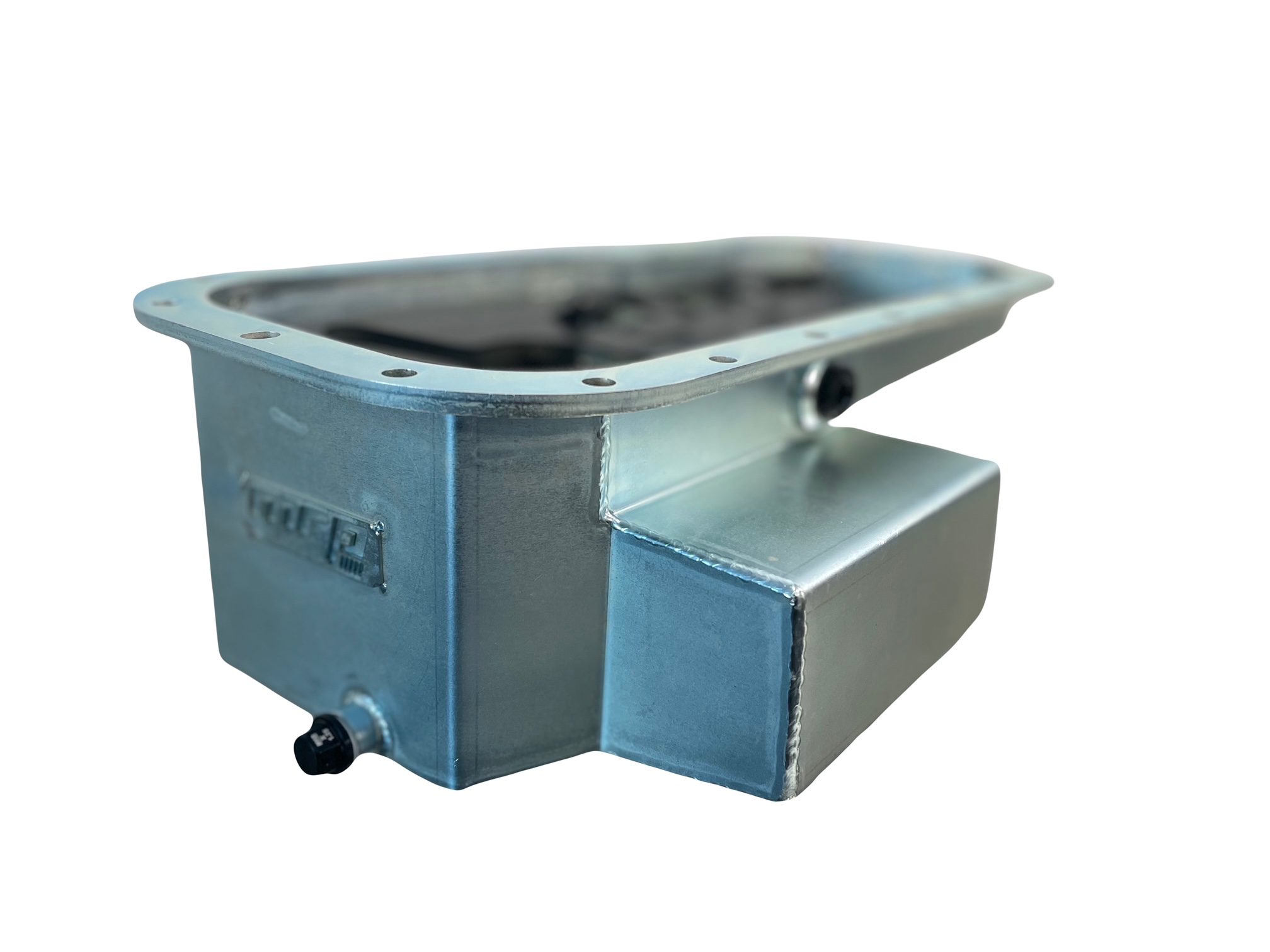

4age 7age Baffled Race Sump Cast

$1,075.00 ex TAX

Available on backorder

Description

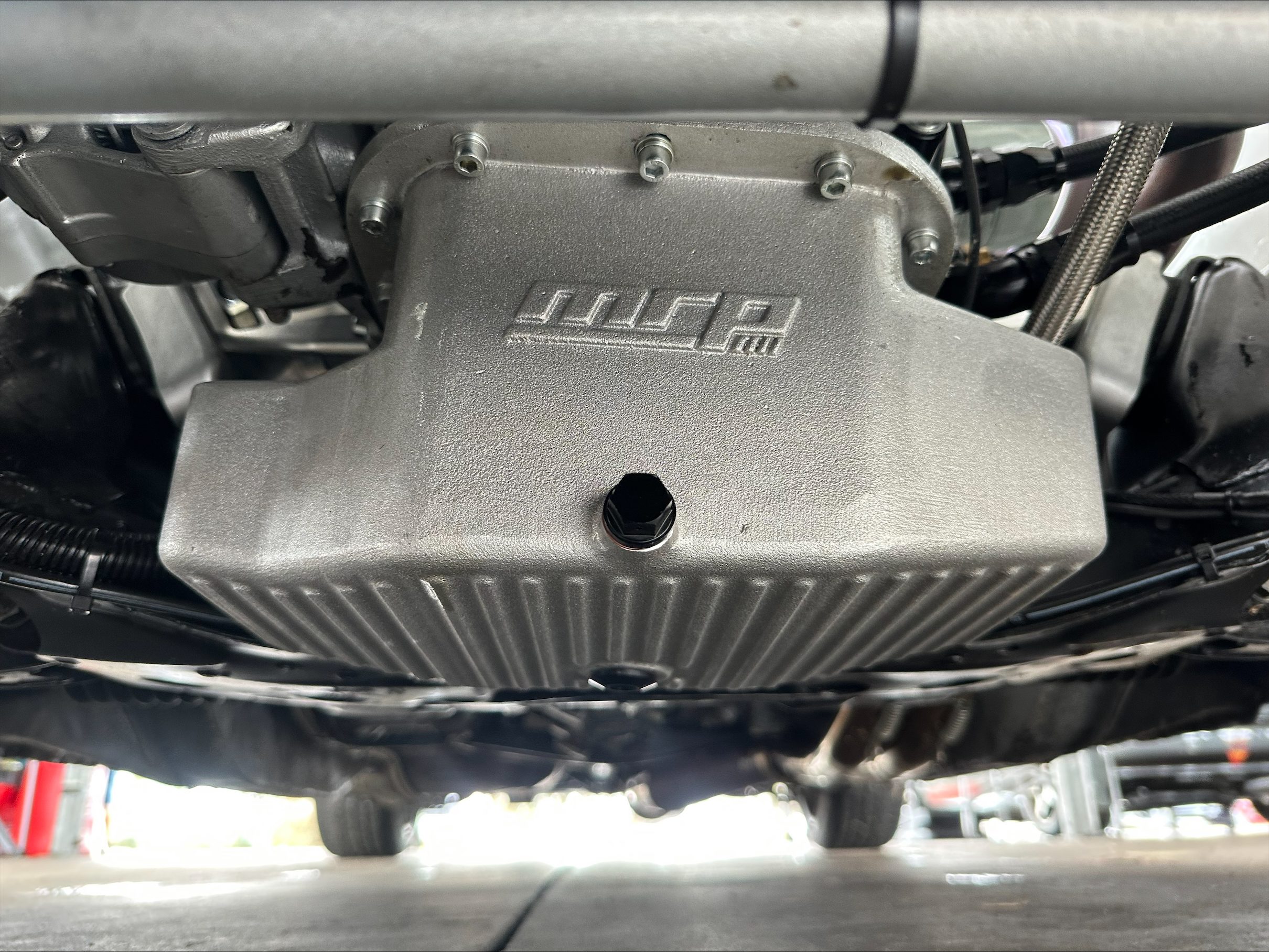

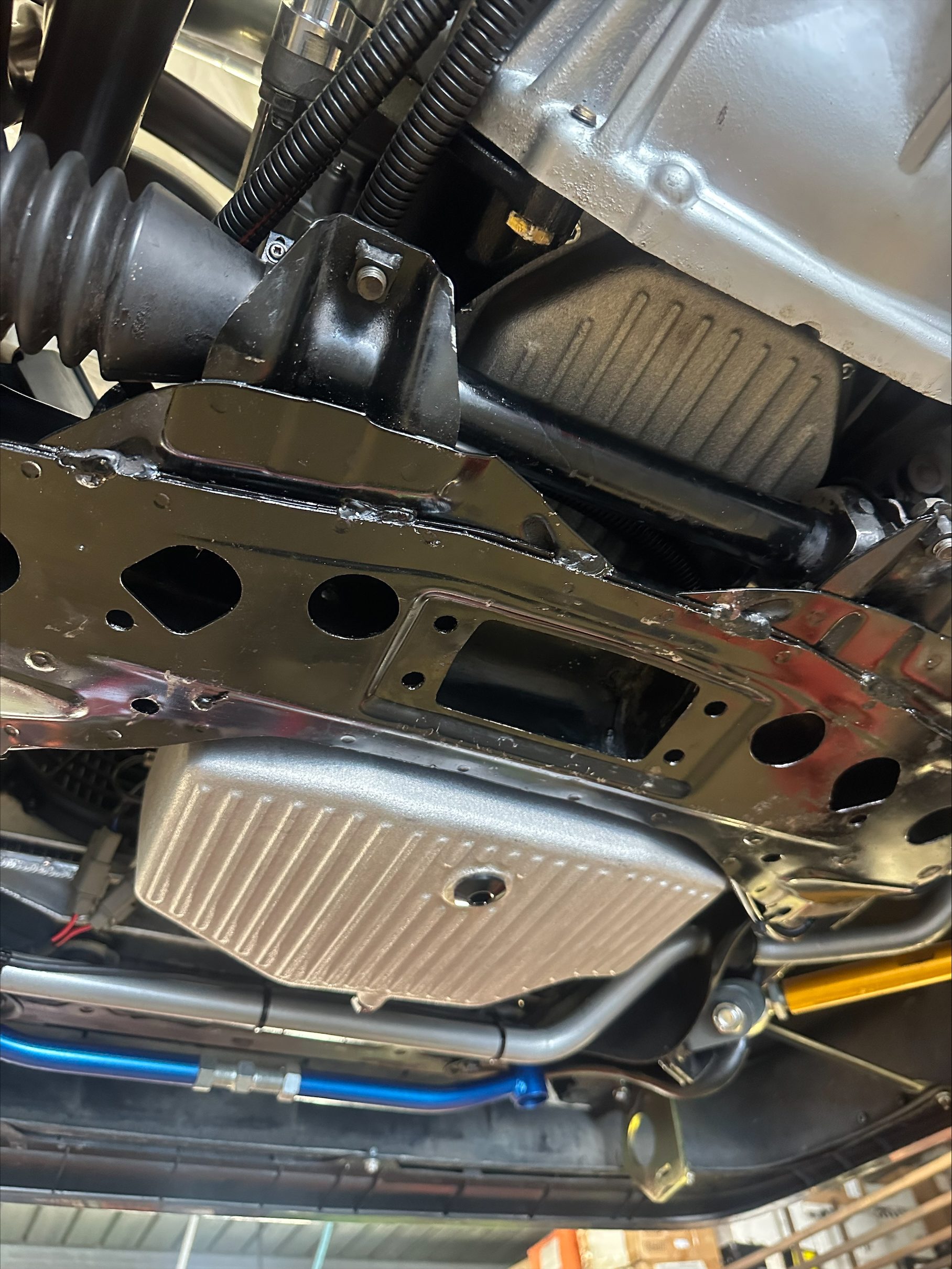

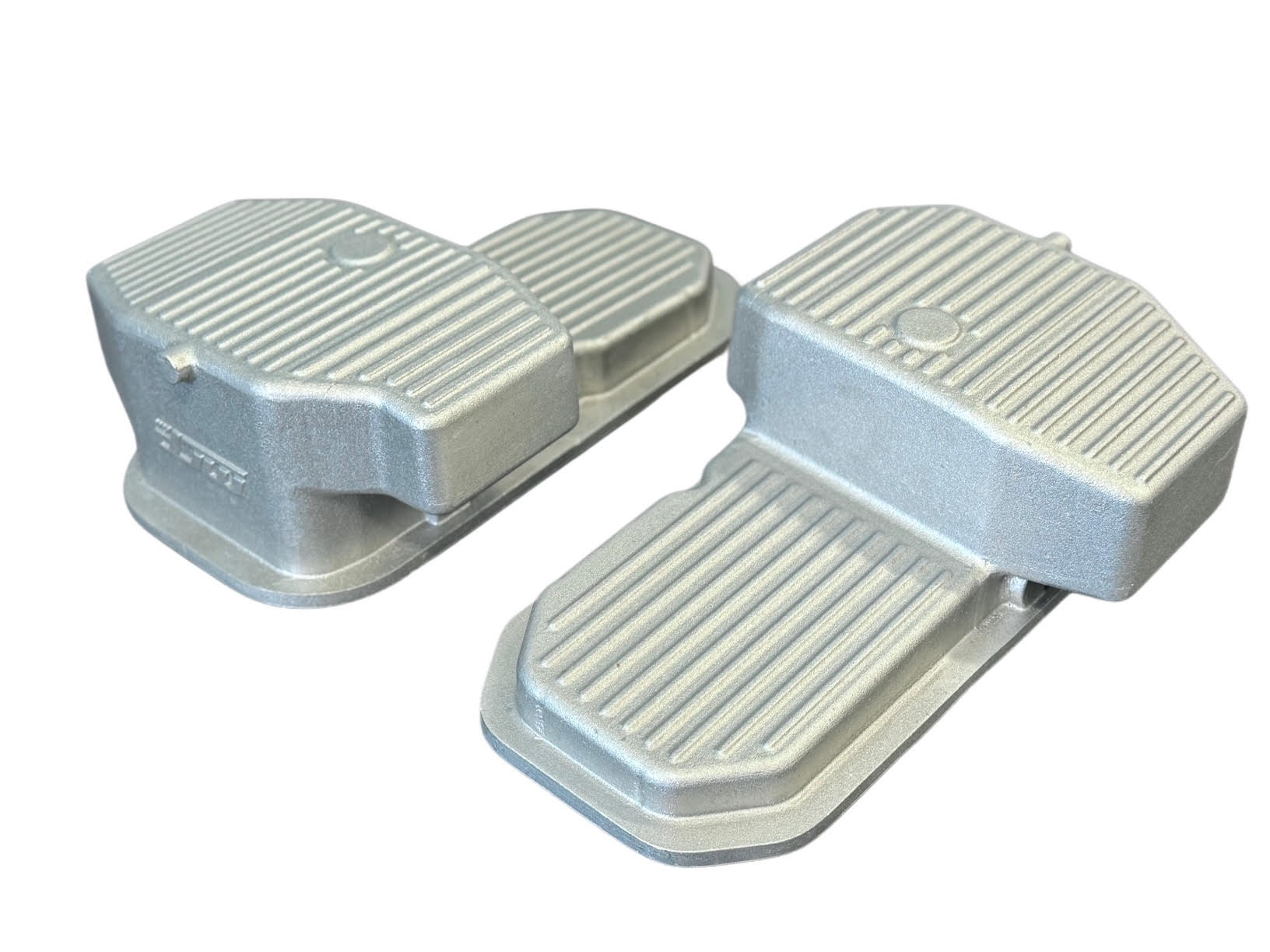

MRP 4age 7age Baffled Race Sump

Fully redesigned in house & Manufactured in New Zealand
Track tested to extensive conditions, this will stop all your oil surge issues which are common on high speed tracks
Featuring Dynamic 4 door trap system

Application: 4age/7age RWD & FWD. Both early (16v) and late (20v) model sump pattern designs

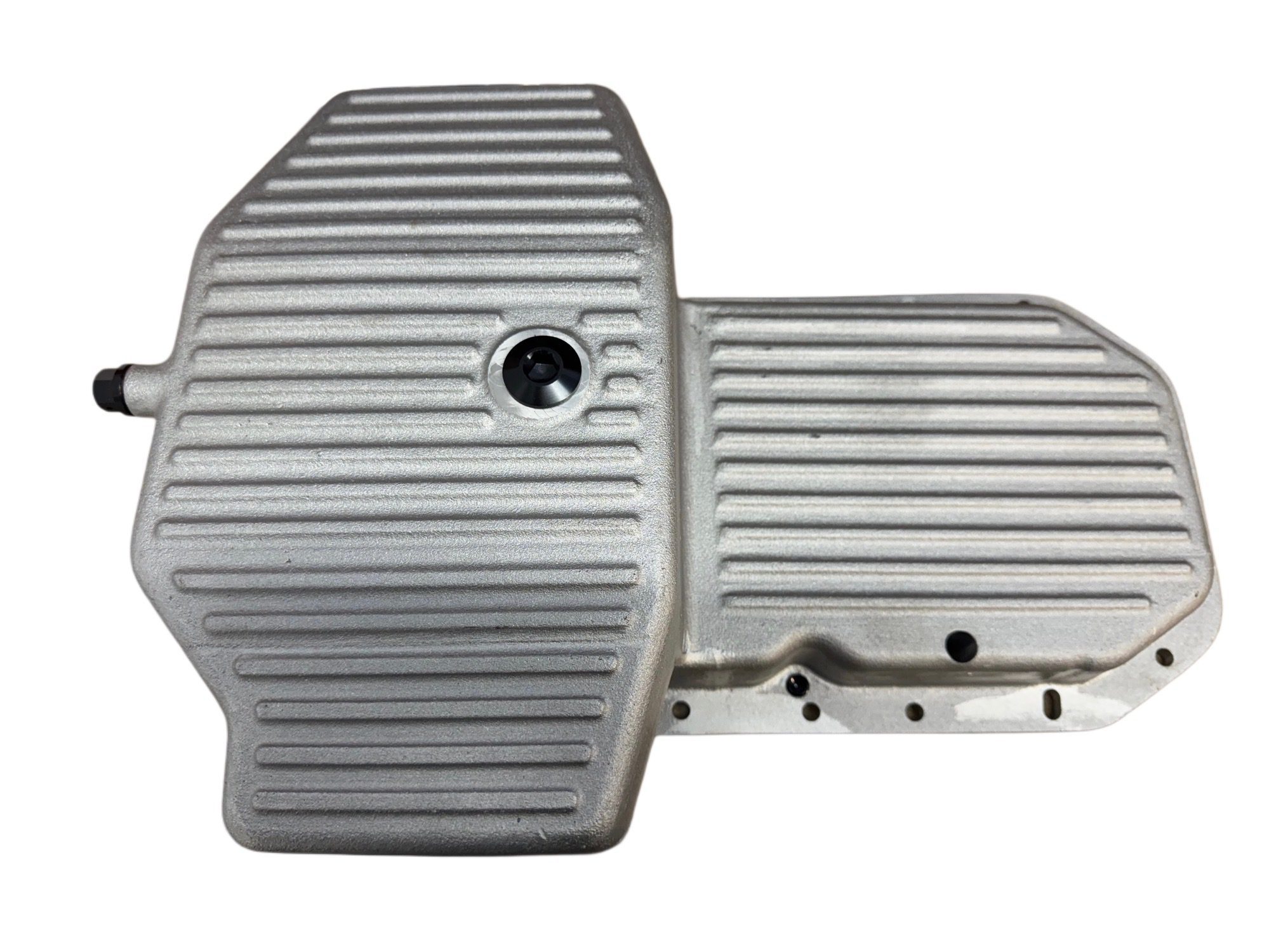

– Material: High quality cast aluminium

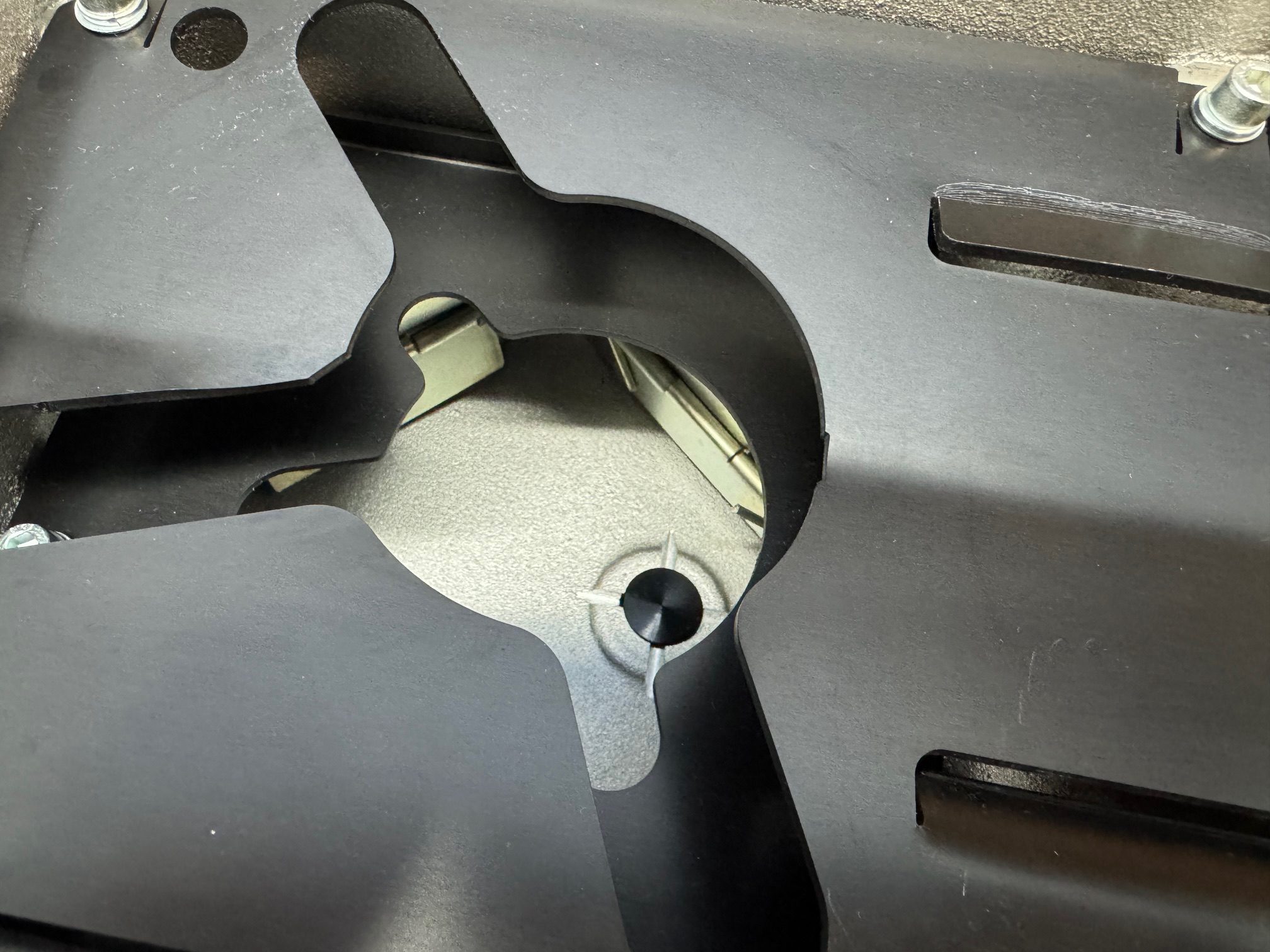

– Baffles: Internal dynamic 30 deg trap doors
– Volume: 4.5L

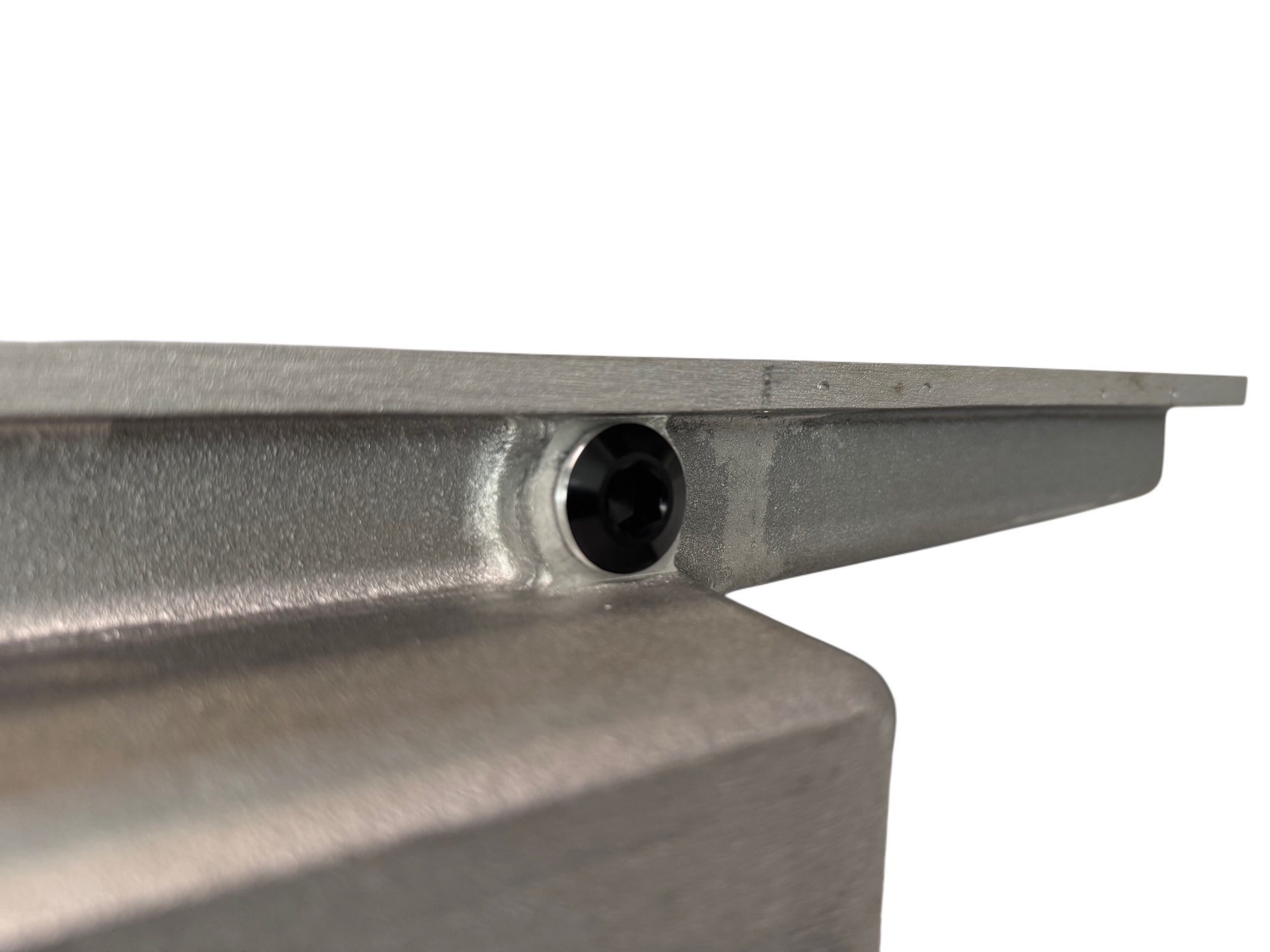

– Ports: 2x ports on each side of the sump which can be used for Turbo drain and Head oil drain (-10 ORB)
– Magnetic Sump Plug + -10 ORB drain plug
– Turbo drain port is in the correct position which is above the oil level – Unlike other brands on the market their drain ports are positioned incorrect meaning this can back up the oil in the drain and cause turbo seals to fail.
– Cap screws provided for fastening

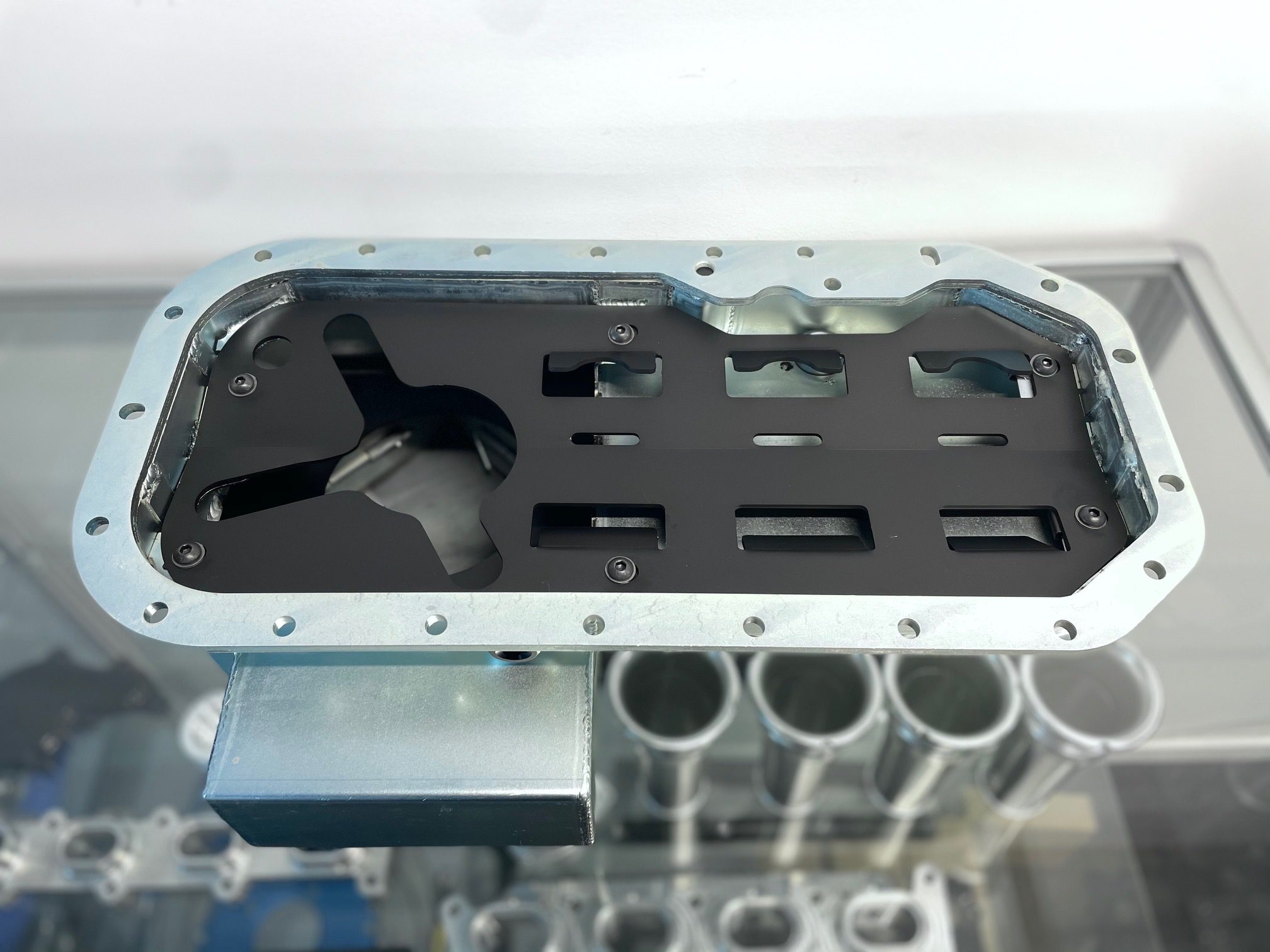

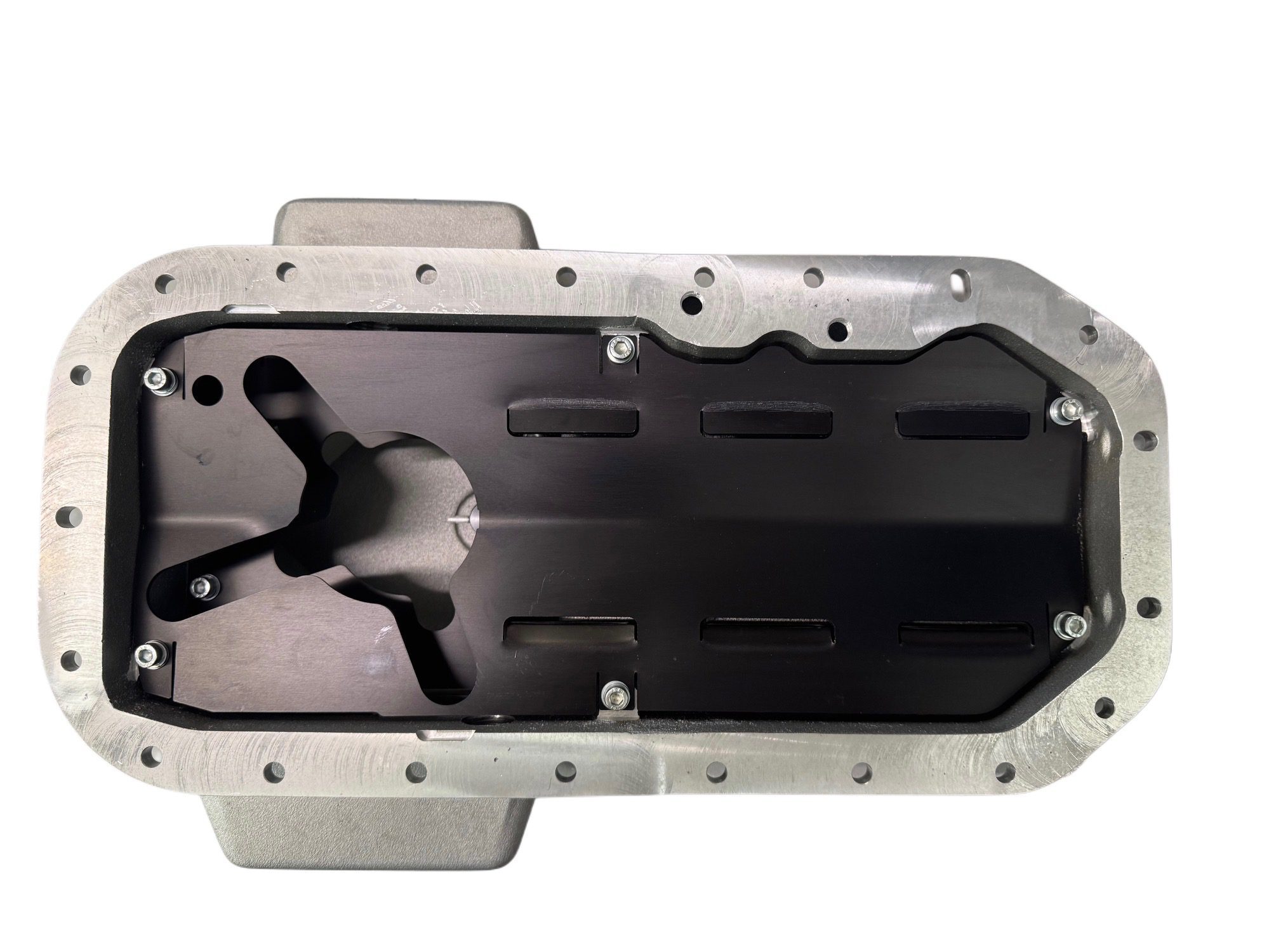

– Optional Windage Tray: Specially designed integrated windage tray therefore you can remove the OEM tray which makes installation much simpler
– 5age/7age/9age requires an additional sump spacer so the crank clears the internal windage tray – Can be made to fit without the spacer by grinding of the tray but we recommend the spacer for easy installation (6mm thick)
– There is no sump gasket as the 4age engine does not run a gasket, they are designed for sealant

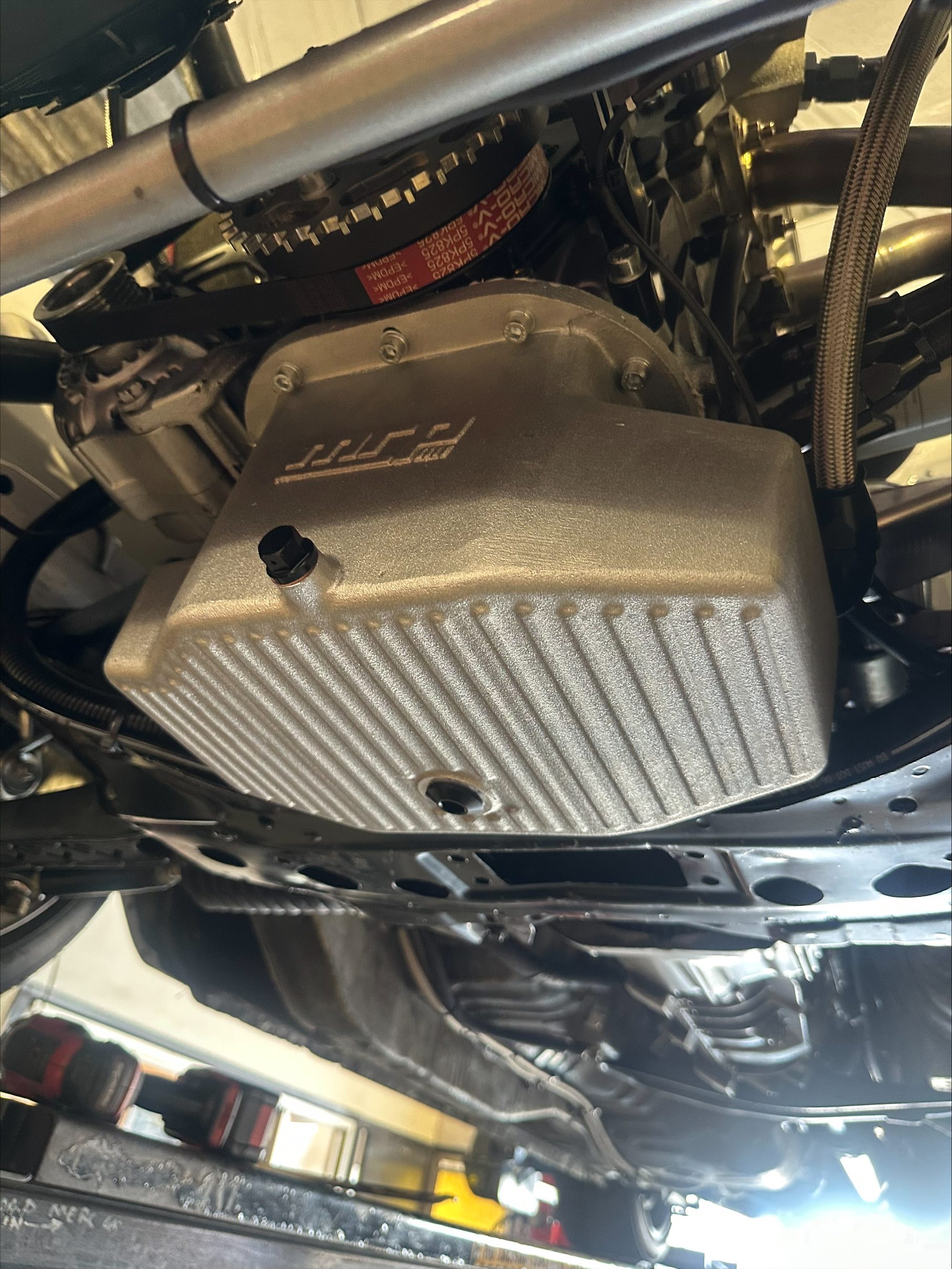

These have been designed to universally fit all variants of 4age/7age setups – AE86, KE Corolla, AE82/92/101/111
Sump is the same height as OEM

Notes: Will not work with SS oil pick ups



Additional information

Weight 8 kg
