4age 20v CNC Head

NZD$1,750.00 ex TAX

Valve Springs

Valves

Core Head

Valve Spring Retainer

Head Stud Hole Size

Camshaft

Stem Seals

Guides

Install & Shim

Description

MRP Developed CNC Ported 4age 20v Head

Developed with our partners direct in NZ we have created a hi flowing 4age 20v head CNC ported
Our heads don’t feature just 1 port suits all, all our porting is done in collaboration with our customers to suit their setup. Our ports differ between turbo, n/a, 1600cc, 1800cc setups etc. Port shape, throat size etc is all calculated based on your requirements and to suit your application, Drag racing is completely different to rally or circuit racing.
Our heads not only feature high CFM flow but Port velocity is what we concentrate on especially, this is how we obtain good overall power through the entire rev range, not just peak power.

Features:

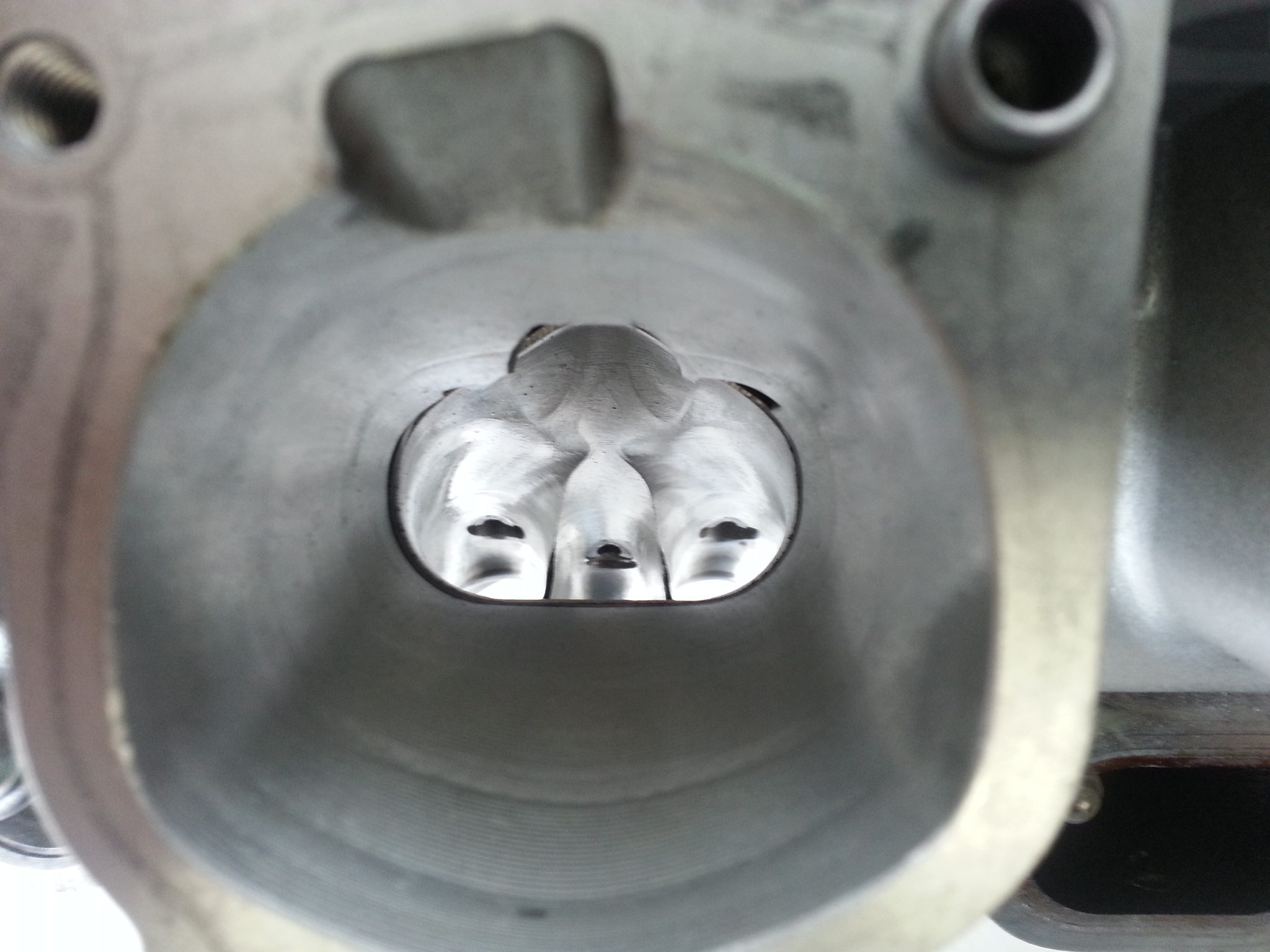

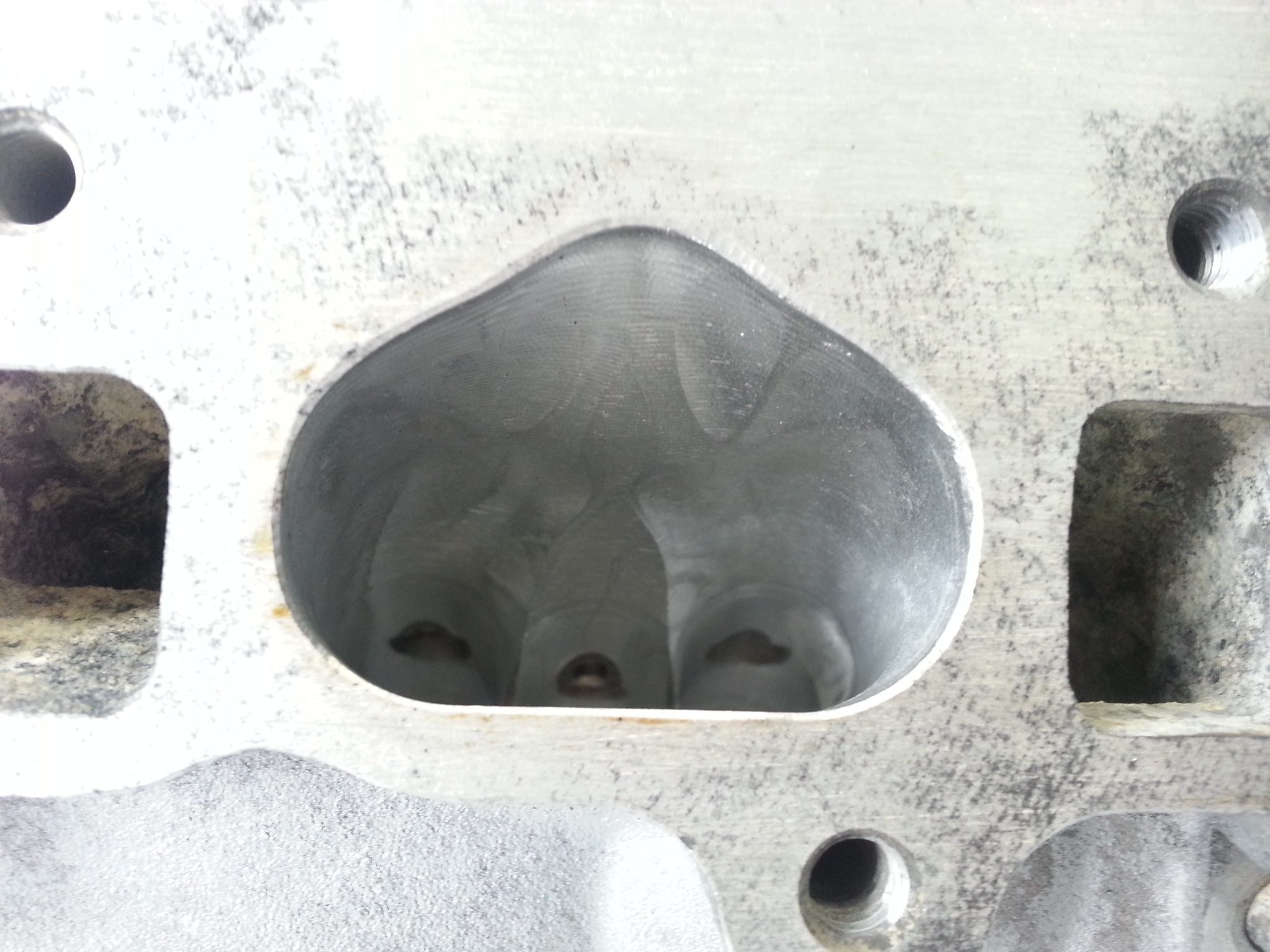

Full CNC ported intake & exhaust ports
Deck skimming
Flow Intake 250cfm @ 10.8mm lift (280cfm @ 1/2″)
Flow Exhaust 200CFM @ 10.8mm lift

This is for a bare ported 20v head – Customer needs to supply us a core head or we can provide a head at extra cost.

OEM Items Supplied:
Buckets
Cam Caps & bolts
Valves

Upgrade Items Optional:
Up-rated valve springs Toda or Supertech
Up-rated valves Supertech +1mm
Bronze guides
Stem seals
Valve seat cutting
Port matching of inlet manifold
Installation of valve train

Additional information

Weight 15 kg
