AE111 2 Step Cam Dowel Pin

NZD$30.00 ex TAX

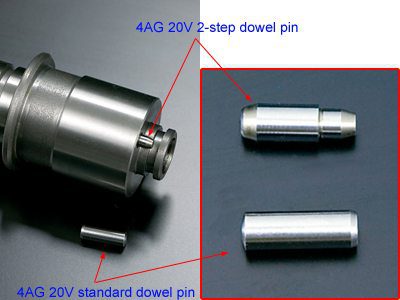

Toda AE111 2 Step Dowel pin

Application: Using Toda or Kelford off the shelf 20v cams require the pin when used with the OME blacktop VVT pulley due to the different centerlines of the silvertop vs blacktop camshaft

Failing to use the dowel pin with the VVT pulley will net a loss in power.

In the case that the STD cam pulley is to be used (Intake with VVT function) the following information is required: TODA’s 4AG20V IN camshaft is based on the AE101 engine, so no extra modifications are required.
The AE111 engine (Black head cover) can also use this IN camshaft but may require the following modifications.
This is due to the cam dowel pin location on the STD camshaft. The position of the STD cam center angle when used with the STD pulley of the AE111 engine is 120deg. TODA’s camshaft center angle become 125deg when used with the STD pulley, this may require the camshaft to be advanced by 5deg.

NOTE: This product is only available for sale in New Zealand, if you are from overseas please search for you local Toda Dealer. Or contact us and we can help advise where to purchase

Additional information

Weight 0.5 kg
