MRP SFX Motion Actuators

NZD$6,295.00 ex TAX

Available on backorder

Categories: ,

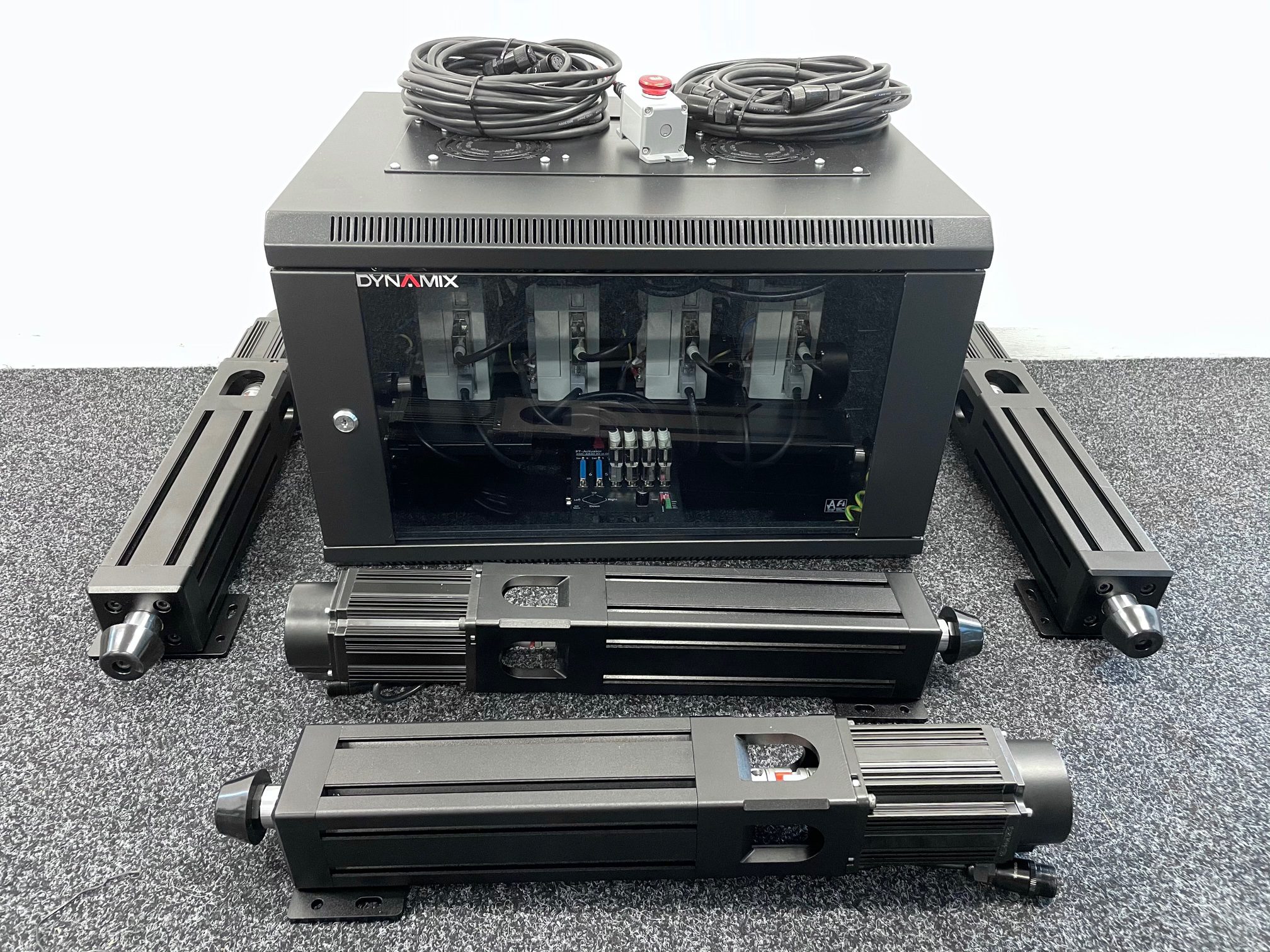

MRP SFX150 Motion Kit

Direct Bolt onto any Extrusion Chassis (4080, 40120, 40160)
Plug & Play System – We have done all the work here, everything is pre-wired and housed in our own MRP case with an EMI filter for additional protection

Extremely immersive & realistic!! must be tried to believe!
The SFX motion kits are known to be one of the best performing, most cost effective kits on the market to date, no need to spend $10k+ to get the same performance

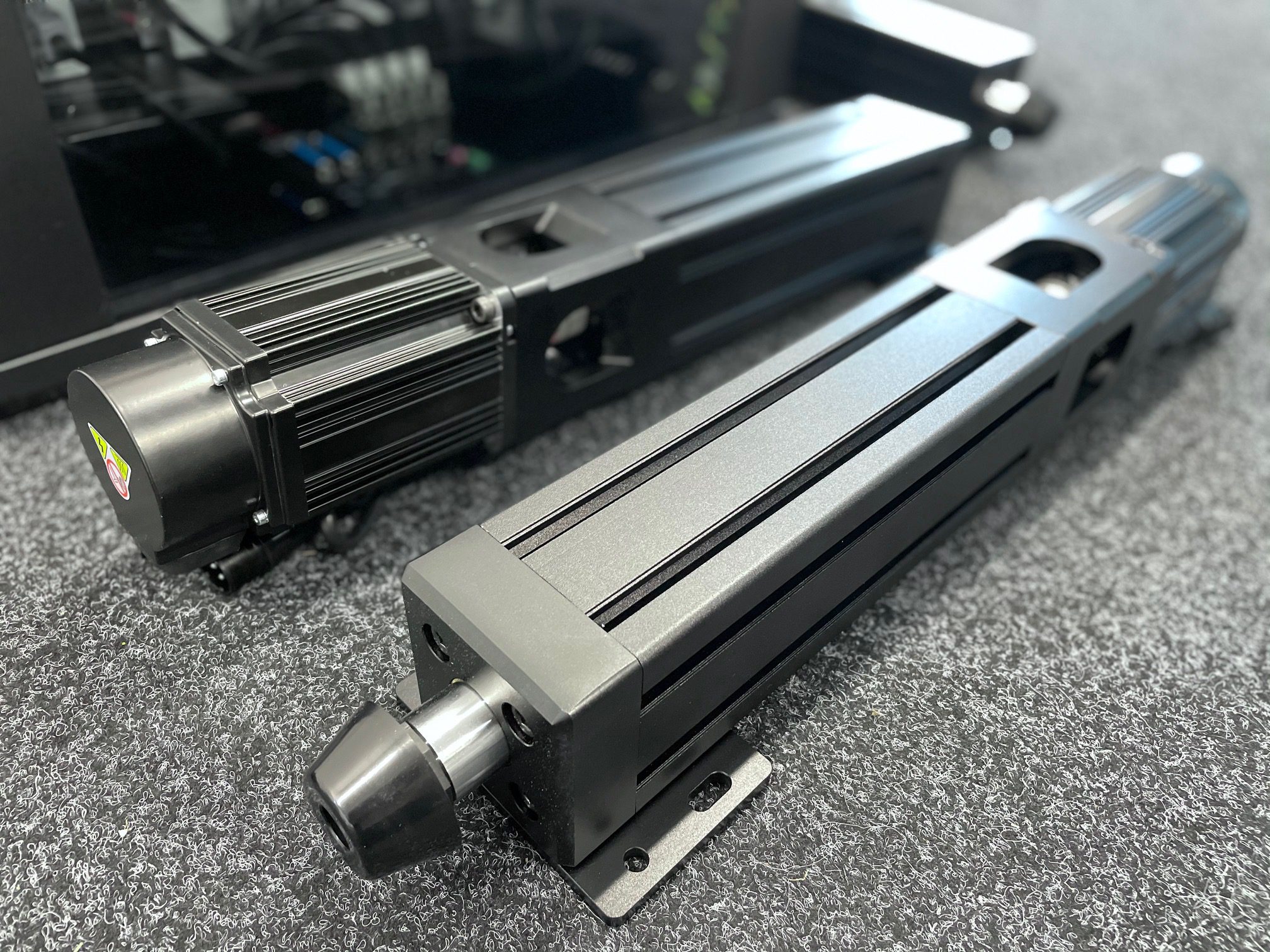

– 4 x Actuators 150mm Stroke
– Ultra fast “Push & Pull” actuators for smooth and precise motion
– All brackets & hardware provided
– Full Aluminium body from top to bottom
– Black Anodized Finish
– Super low center of gravity, mounting point only 5cm from floor
– Best in class on EMI suppression efficiency
– Thanos AMC-AASD15A controller in full metal enclosure (supports 7 channels)
– 4 x AASD-15A V6.3.1 servo drivers housed in a MRP built server case with an EMI Filter
– Aluminium Mounting Plates with nuts and bolts
– Ultra high quality shielded cables for motors (4 meters)
– E-Stop in compact and light weight aluminium housing
– Includes all cables to provide a plug-n-play experience

Actuator Specifications:
– Speed: 250mm/s
– Servo Motor: 80mm flange, 750w
– Max Load: 180kg per actuator
– Voltage: 110-220V

Dimension & Weight:
– 80mm x 80mm x 580mm (per actuator)
– 7.3kg (per actuator)

Sim Racing Studio Software Required
Lead time if not in stock 3 weeks

Additional information

Weight 30 kg
