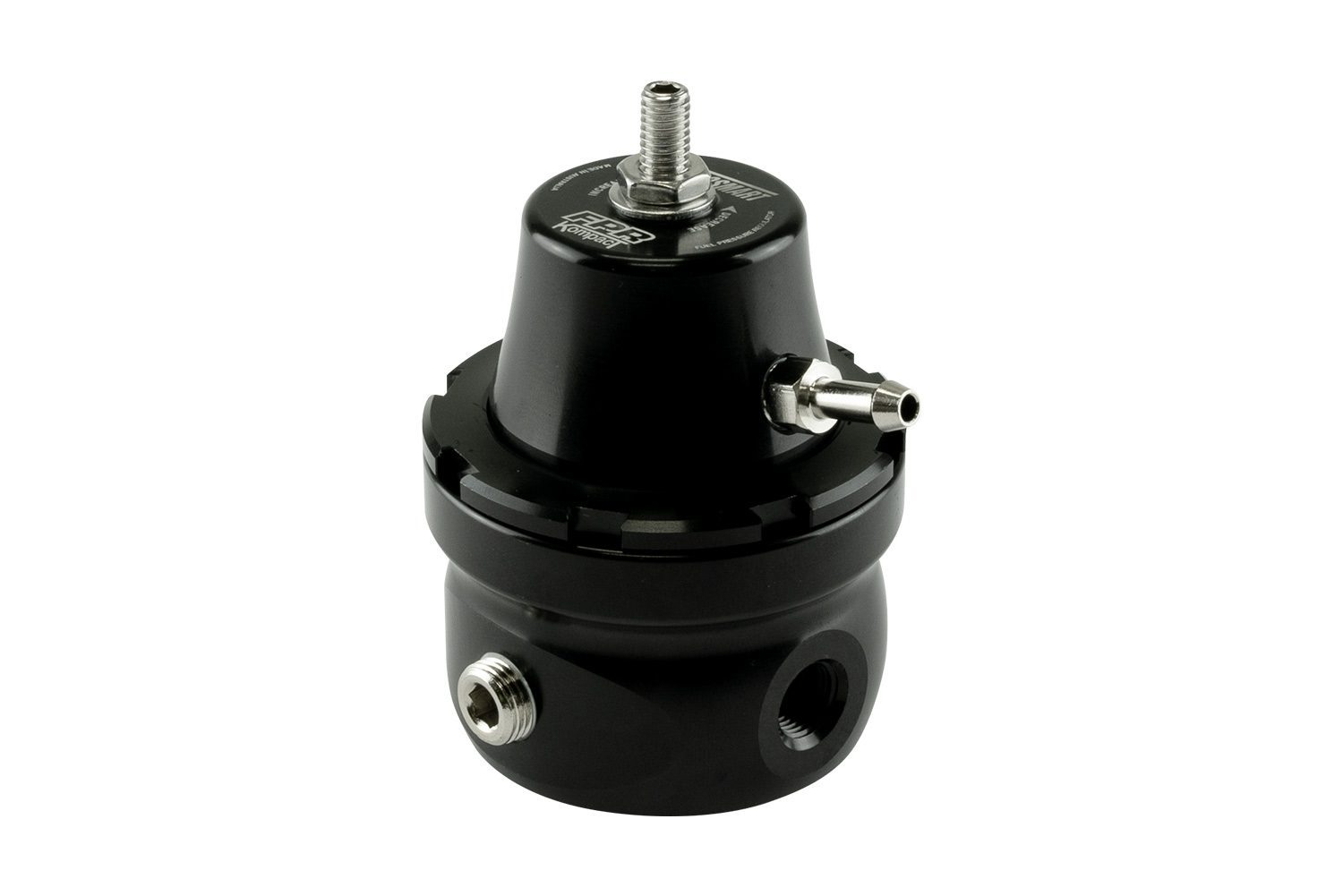

FPR800 1/8 NPT

Description

Turbosmart’s newest High-performance EFI fuel pressure regulator is smaller, lighter and better! Now featuring two 1/8″ NPT inlet ports, one 1/8″ NPT return port and 1/8″ gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems

FPR’s feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same
Factory tested

Supplied With: Mounting bracket and retaining clip, vacuum fitting and gauge port blank.

• EFI fuel regulator
• 3 x 1/8″ NPT ports
• 1/8″ NPT Gauge port
• Capable of regulating up to 800hp of fuel flow
• 1:1 manifold pressure ratio with no load losses
• 30-90psi base pressure range
• Stainless steel internals providing maximum integrity and reliability
• Suitable for all fuel types
• Operational between -35ºC to +200ºC
• MILSPEC diaphragm
• Bracket and retaining clip supplied
• Pressure port 1/16 NPT with nipple supplied
• Manufactured, assembled and validated in-house at Turbosmart HQ

For more details please visit the manufactures website: FPR800
