7a H-Beam Conrods

NZD$615.00 ex TAX

Description

MRP 7a Pro H-Beam Conrods

After many years of R&D and real track testing we have come up with our own 7a conrods which are custom made to our specs, for those wanting to build 7agte or 7age configurations. These conrods use the stock 7a bearings and fit 4age floating 20mm gudgen pins.

We have track tested these to 800hp+ and 10,000rpm!

**MRP rods feature notched out tunnels to direct oil up into the bottom of the piston**

Material: 40Crnimoa (4340) Forged Steel
Hardness: HRC-33-38
Special doweled cap and profiled clearance
Silicon bronze bushings for floating piston wrist pins
Fully machined to produce the lightest and strongest rod possible
Sets weight matched +/- 1.5 grams
ARP 2000 conrod bolts (up to 800hp) – For higher HP rating ARP 625 Series is needed
133mm center to center
HP Rating: 200hp per rod (Total 800hp) and 10,000rpm

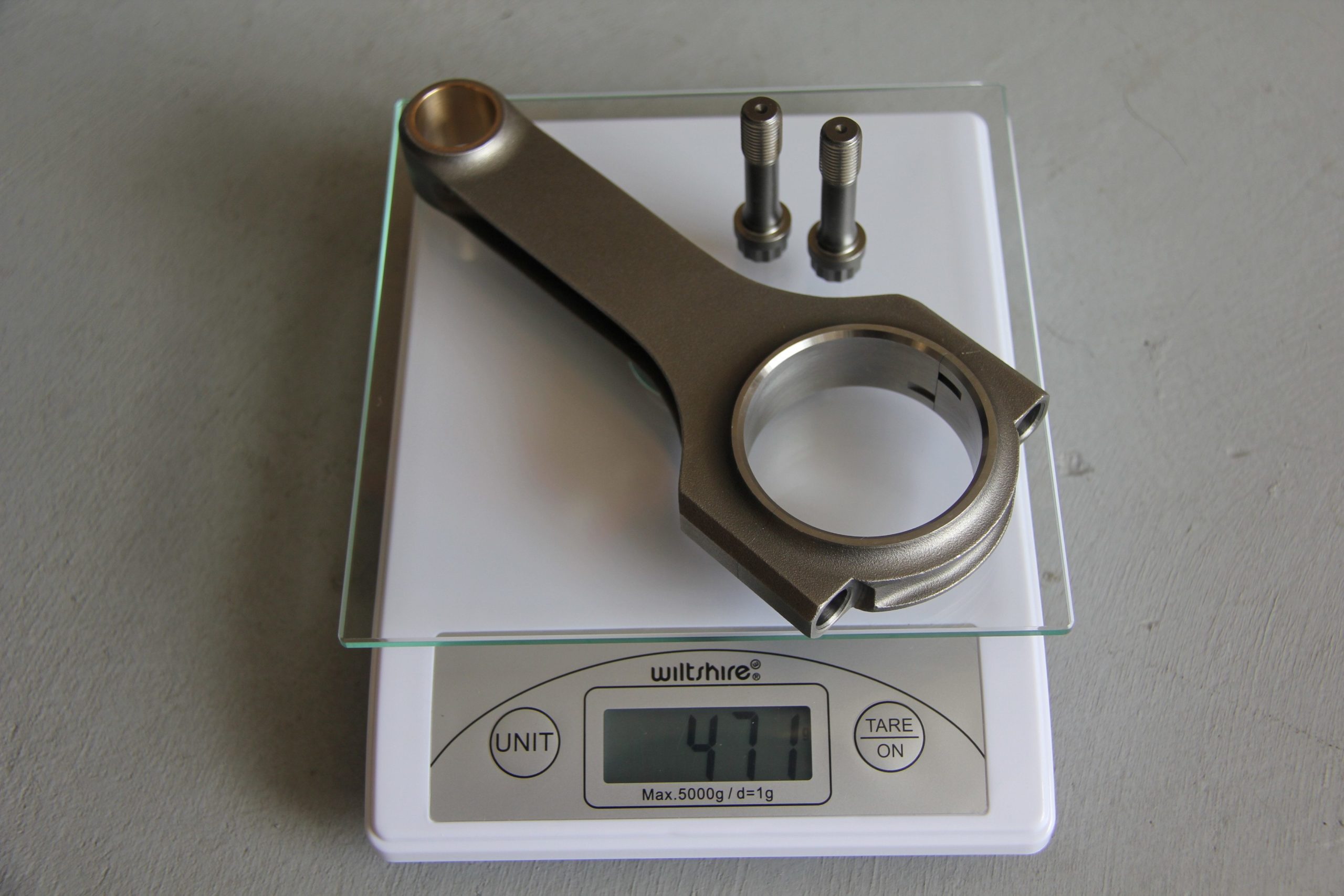

471g total weight incl bolts (bolts are 54g)

Additional information

Weight 2.5 kg
